Product Description

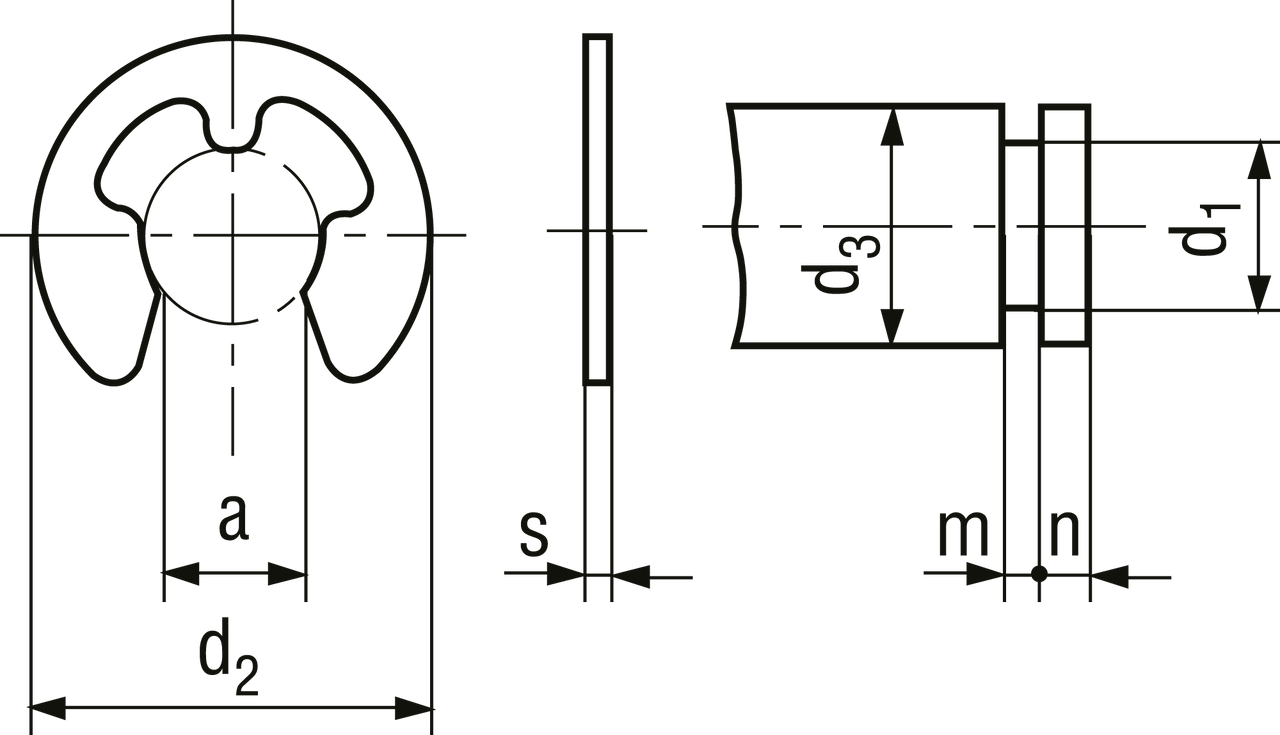

Spring steel Circlips for shafts, #, Finish zinc plated blue. ISO 4042 Quenched and tempered fasteners ≥ 360 HV and tempered case-hardened fasteners with electroplated coatings: Susceptible to hydrogen embrittlement! Further notice to residual risks can be found in the introduction section.
Product Specs
- SKU:
- 1285114
- d1 h11:
- 1,5
- d2 max. fitted:
- 4,25
- a ± IT 10 not fitted:
- 1,28
- s:
- 0,4
- Tolerance:
- 0,02
- d3 min:
- 2
- d3 max.:
- 2,5
- m min.:
- 0,44
- n min.:
- 0,8
