Product Description
Steel Slotted pan head thread cutting screws, with tapping screw thread type 1, Finish zinc plated blue. ISO 4042 Quenched and tempered fasteners ≥ 360 HV and tempered case-hardened fasteners with electroplated coatings: Susceptible to hydrogen embrittlement! Further notice to residual risks can be found in the introduction section.
Product Videos

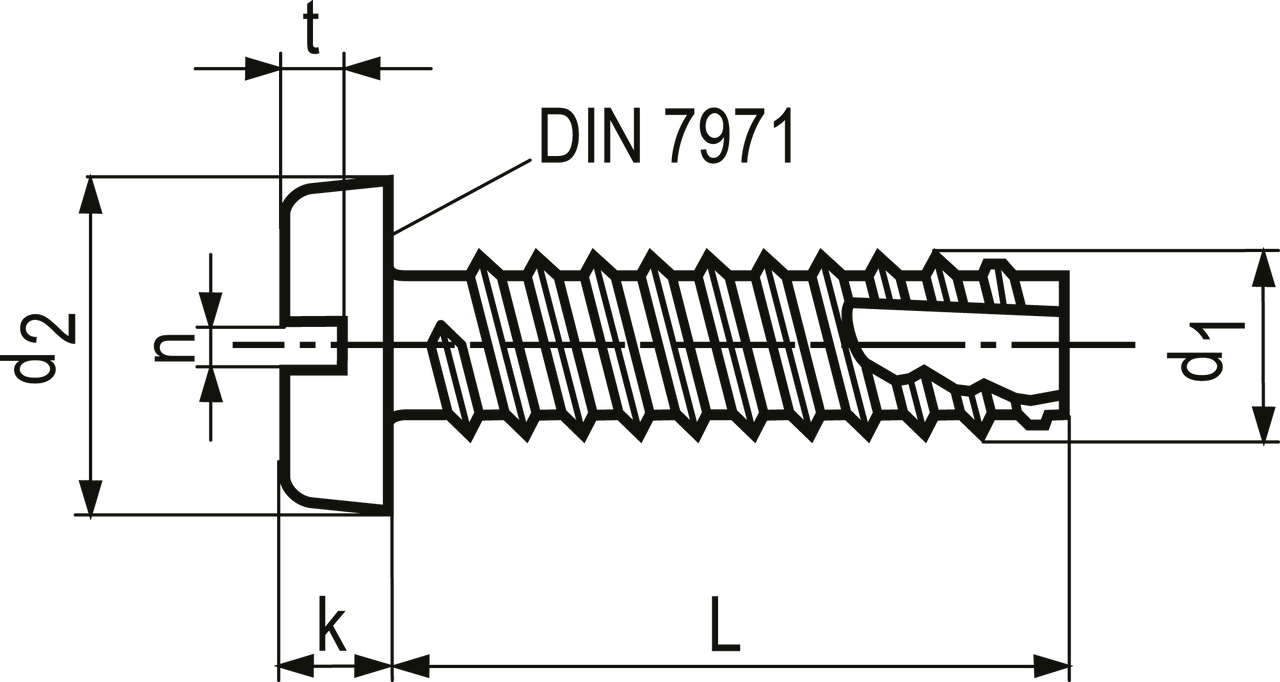

Custom Field
d1 ST 2,9
L (gross) 22
d2 max. 5,6
k max. 1,75
n 0,8
t min. 0,75
Hole diameter 2,5
Spec Sheet Specification Sheet
