Product Description
Stainless steel Self-clinching threaded studs, with UNC thread, for stainless steel and metallic materials, Finish passivated.

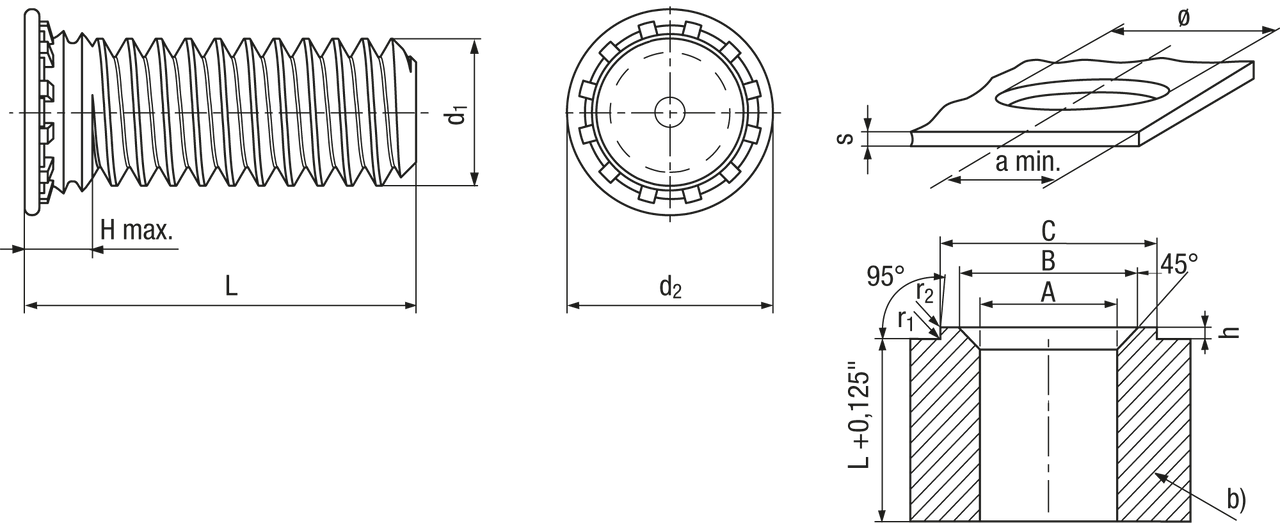

Product Specs
- SKU:
- 300217212
- Thread size (d1):
- 8-32
- Hole size +0,003/0:
- 0,163in
- a min.:
- 0,281in
- H max. (Gross):
- 0,09in
- d2 ±0,015:
- 0,237in
- Sheet thickness (s):
- 0,04-0,095in
- A +0,003/0:
- 0,166in
- B ±0,002 (gross):
- 0,202in
- C ±0,002:
- 0,236in
- h ±0,001:
- 0,01in
- r1 max.:
- 0,003in
- r2 max.:
- 0,005in
- L ±0,4:
- 0,375in
- Code:
- FH4-832-6
