Product Description

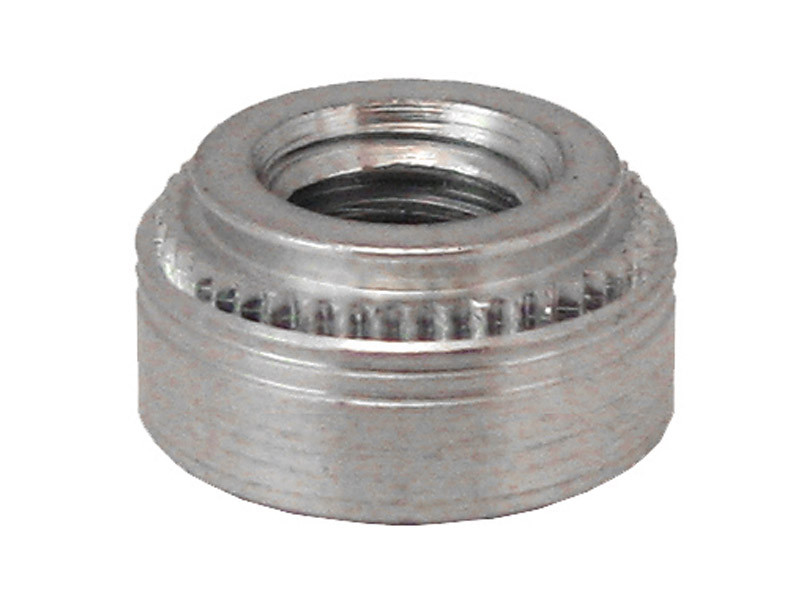

These compact aluminum self-clinching nuts are specifically engineered to introduce robust, load-bearing threads into ultra-thin alloy sheets without structural distortion. When pressed into place using a controlled parallel squeezing force, the fastener utilizes an undercut design that causes the host sheet material to cold flow cleanly around the shank. This seamless integration features a serrated clinching ring that completely eliminates the risk of hardware rotation or pull-out during high-torque assembly, making it highly effective for compact, weight-sensitive applications.
High Pushout and Torque-Out Resistance: The proprietary cold-flow undercut design tightly interlocks with the panel material to withstand heavy axial and rotational stress.
Galvanic Compatibility Optimization: Fabricated from premium aluminum to ensure a perfect mechanical and chemical match in lightweight aluminum sheet applications.
Ultra-Thin Panel Adaptation: Reliably provides precise internal threading in delicate metal panels that are otherwise impossible to conventionally tap.
Clean, Weld-Free Installation: Simplifies modern manufacturing processes by removing the need for specialized welding, hot tapping, or loose hardware backing.
Product Specs
- SKU:
- CLA-632-2
- Part Number:
- CLA-632-2
- Thread Size:
- .138-32 (#6-32)
- Thread Specification:
- Internal, ASME B1.1, 2B
- Thread Type:
- Internal
- Fastener Material:
- Aluminum
- Minimum Sheet Thickness:
- .056 in.
- Hole Size in Sheet:
- .213 in. (+.003 - .000)
- Minimum Distance Hole Centerline to Edge:
- .27 in.
- For Use in Sheet Hardness:
- HRB 50 / HB 82 or less
