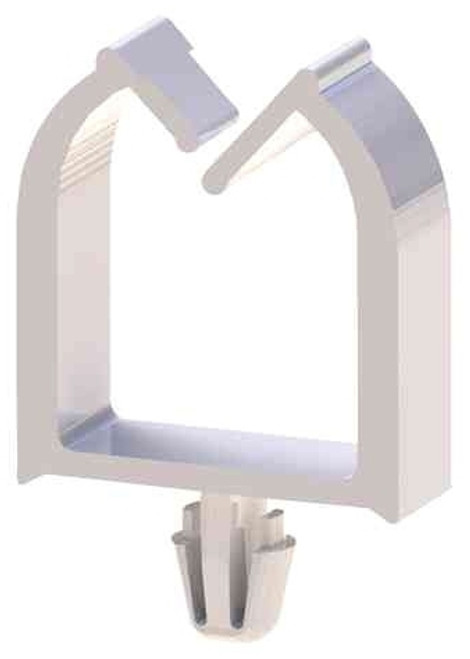

    MWSEA2-1-1-19 - Wire Saddle by Essentra

MWSEA2-1-1-19 - Wire Saddle by Essentra

0.29" x 0.36" x 0.29", 0.093" Thk Panel, Push-In/Hole Mount, Natural, Nylon 6/6, Miniature, Rectangular, Micro, Snap Lock, Wire Saddle
Availability:
Pricing:
Order:
Out Of Stock
Requires a Quote
Product Documents:
Wire Saddle; Type Miniature, Rectangular, Micro, Snap Lock; Material Nylon 6/6; Color Natural; Length 0.29 Inch; Width 0.36 Inch; Mounting Push-In, 0.138 Inch Diameter Hole; Standard Package 1000; Approval UL E71558, CSA; RoHS Compliant; Overall Size 0.16 Inch Depth x 0.29 Inch Height; Inside Dimension 0.26 Inch Width x 0.12 Inch Height; Panel Thickness 0.093 Inch; Anchor Length 0.122 Inch; Material Type RMS-19; Flammability Rating UL 94V-0

RoHS Compliant; Overall Size 0.16 Inch Depth x 0.29 Inch Height; Inside Dimension 0.26 Inch Width x 0.12 Inch Height; Panel Thickness 0.093 Inch; Anchor Length 0.122 Inch; Material Type RMS-19; Flammability Rating UL 94V-0
Width
  • 0.160 in (4.06mm)
  • Height
  • 0.290 in (7.36mm)
  • Length
  • 0.290 in (7.36mm)
  • Color
  • Natural
  • Material
  • Nylon 6/6
  • Mounting Type
  • Push-In
  • RoHS Compliant
  • RoHS Compliant
