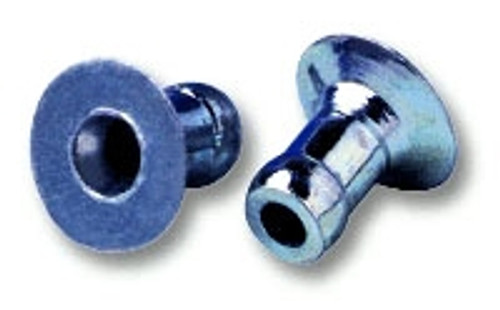

1822-0407 - Rivet by Stanley Engineered Fastening (Avdel)
3.17 MM Diameter Shank, 5.84 MM x 0.76 MM Countersunk Head, 0.1 to 0.15" Grip Range, Low Carbon Steel, 120D, Rivet
Rivet; Type 120 Degree; Shank Diameter 3.17 Millimeter; Head Type Countersunk; Head Diameter 5.84 Millimeter; Head Thickness 0.76 Millimeter; Recommended Hole Diameter 0.129 to 0.132 Inch; Material Low Carbon Steel; Material Specification SAE 1008, EN 10263-2 C8C; Finish Zinc Plated, Clear Trivalent Passivated; Nominal Diameter 3.2 Millimeter; Overall Length 5.79 Millimeter; Grip Range 0.1 to 0.15 Inch; Shear Strength 213 Pound-Force; Tensile Strength 370 Pound-Force; Application Automotive, Electronic Component, Sheet Metal, Electrical Engineering, Domestic Appliance, Furniture, General Light Fabrication
Bulbed Tail and Foreshortening of the Fastener During Installation Ensures High Clamp; Bulbed Tail and Large Head Style Provide a Large Bearing Area for Soft Materials; Tapered Tail for Ease of Hole Entry; Expands Radially During Installation to Ensure Maximum Hole Fill; Lower In-Place Costs than Welding or Nail Rivets; Bright Tin Plated Brass Option for Ease of Soldering and Good Electrical Conductivity; Stainless Steel Option for Applications Subject to High Temperature or Corrosion; Can be Bowl Fed for Larger Volume Applications Using Automated Equipment
0.1 to 0.15 in.
LOW CARBON STEEL
