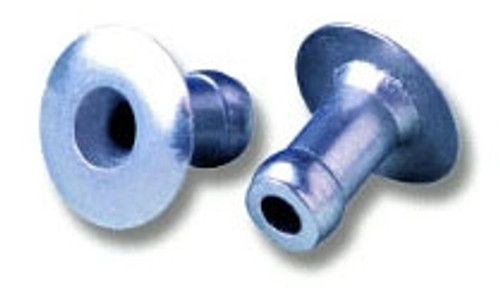

    1822-0408 - Rivet by Stanley Engineered Fastening (Avdel)

1822-0408 - Rivet by Stanley Engineered Fastening (Avdel)

3.17 MM Diameter Shank, 5.84 MM x 0.76 MM Countersunk Head, 0.14 to 0.19" Grip Range, Low Carbon Steel, 120D, Rivet
Availability:
Pricing:
Order:
100867
1+$0.1385
100+$0.0922
500+$0.0792
Product Documents:
Rivet; Type 120 Degree; Shank Diameter 3.17 Millimeter; Head Type Countersunk; Head Diameter 5.84 Millimeter; Head Thickness 0.76 Millimeter; Recommended Hole Diameter 0.129 to 0.132 Inch; Material Low Carbon Steel; Material Specification SAE 1008, EN 10263-2 C8C; Finish Zinc Plated, Clear Trivalent Passivated; Nominal Diameter 3.2 Millimeter; Overall Length 6.81 Millimeter; Grip Range 0.14 to 0.19 Inch; Shear Strength 213 Pound-Force; Tensile Strength 370 Pound-Force; Application Automotive, Electronic Component, Sheet Metal, Electrical Engineering, Domestic Appliance, Furniture, General Light Fabrication

Bulbed Tail and Foreshortening of the Fastener During Installation Ensures High Clamp; Bulbed Tail and Large Head Style Provide a Large Bearing Area for Soft Materials; Tapered Tail for Ease of Hole Entry; Expands Radially During Installation to Ensure Maximum Hole Fill; Lower In-Place Costs than Welding or Nail Rivets; Bright Tin Plated Brass Option for Ease of Soldering and Good Electrical Conductivity; Stainless Steel Option for Applications Subject to High Temperature or Corrosion; Can be Bowl Fed for Larger Volume Applications Using Automated Equipment
Grip Range
  • 0.14 to 0.19 in.
  • Thickness
  • 0.76 mm. Head
  • Type
  • 120 Degree
  • Diameter
  • 5.84 mm.
  • Length
  • 6.81 mm.
  • Shape
  • Countersunk Head
  • Material
  • LOW CARBON STEEL
  • Finish
  • Zinc Plated
