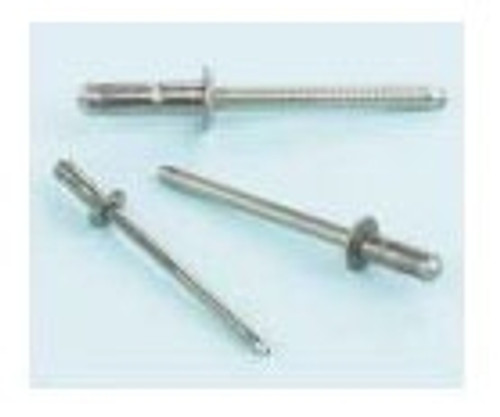

    BN01-0614 - Rivet by Stanley Engineered Fastening (Avdel)

BN01-0614 - Rivet by Stanley Engineered Fastening (Avdel)

3/16" x 0.579" Shank, 0.378" x 0.059" Dome Head, 0.138 to 0.236" Grip Range, Carbon Steel, Break Stem, Rivet
Availability:
Pricing:
Order:
9530
1+$0.263
100+$0.1752
500+$0.1504
Product Documents:
Rivet; Type Break Stem; Shank Diameter 3/16 Inch; Mandrel Diameter 0.126 Inch; Shank Length 0.579 Inch; Head Type Dome; Head Diameter 0.378 Inch; Head Thickness 0.059 Inch; Recommended Hole Diameter 0.193 to 0.201 Inch; Material Carbon Steel; Material Specification BS3111 Type 0/Type 1, SAE 1008/1030/1037/1040/1045, DIN 1654, QSt 34-3 / BS3111 Type 0, SAE 1015 DIN 1711, RSt 38-2, Werkstoff 1.0401/1.1178/1.1176/1.1186/1.1191; Finish Trivalent Zinc Clear; Grip Range 0.138 to 0.236 Inch; Shear Strength 944 Pound-Force; Tensile Strength 854 Pound-Force; Application Automotive, Cabinet and Enclosure, Heating and Ventilation, Telecommunication, General Light Industrial

High Shear and Tensile Strength Providing Strong, Vibration Resistant Joints; Stainless Steel Avinox for High Corrosion Resistance and Applications Requiring Elevated Temperatures; Provides a Large Blind Side Bearing Area Against the Rear Sheet; Spreads the Tail Bearing Load/Clamp Load on the Rear Sheet Making it Ideal for Use in Thin Sheet Materials; Good Hole Fill Compensates for Irregular, Oversized, Slotted or Misaligned Holes; Retained Stem Avoids Damage, Electrical Problems or Rattling Caused by Loose Stems
Thickness
  • 0.059 in. Head
  • Grip Range
  • 0.138 to 0.236 in.
  • Diameter
  • 0.378 in.
  • Length
  • 0.579 in. Shank
  • Type
  • Break Stem
  • Material
  • CARBON STEEL
  • Shape
  • Dome Head
  • Finish
  • Trivalent Zinc Clear
  • Available Combo Deals
