  • 300121221

    • 300121221

    Request a quote
    SKU:
    300121221
    Code:
    FH4-M5-35

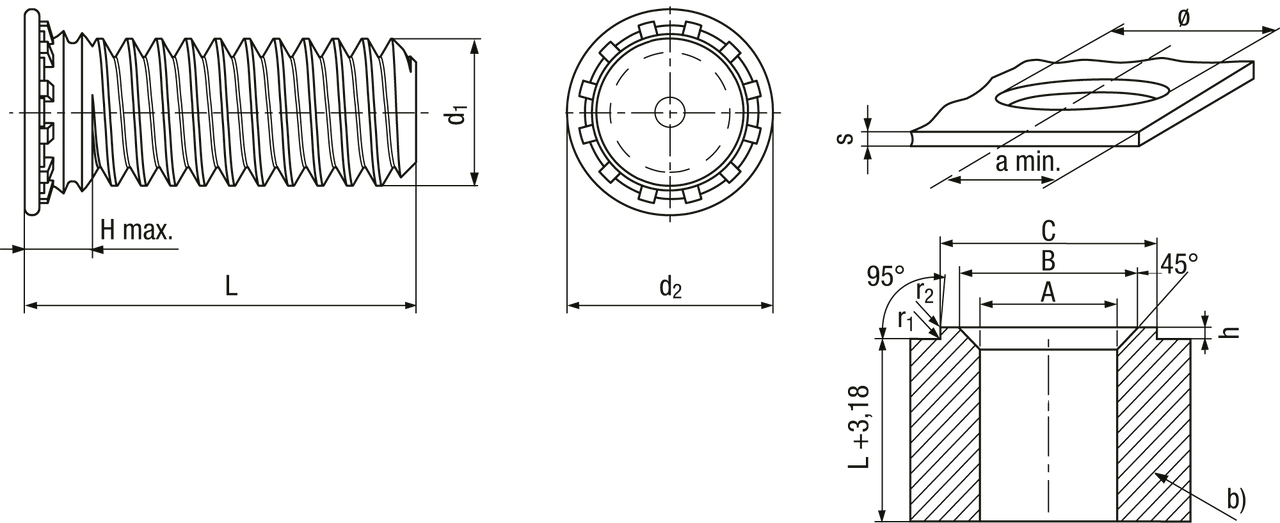

    Thread size (d1):
    M5
    L ±0,4:
    35
    Hole size +0,08/0:
    5
    a min.:
    7,2
    H max. (Gross):
    2,7
    d2 ±0,4:
    6,5
    Sheet thickness (s):
    1-2,4
    A (gross):
    5,08
    Toleranz 1:
    ±0,08
    B ±0,05 (gross):
    6,15
    C ±0,05 (gross):
    7,16
    h ±0,025:
    0,25
    r1 max.:
    0,08
    r2 max.:
    0,13
    Spec Sheet:
    Specification Sheet

    Out of stock

    Product Description

    Stainless steel Self-clinching threaded studs, for stainless steel and metallic materials, Finish passivated.

    Product Videos

    Custom Field

    Code FH4-M5-35
    Thread size (d1) M5
    L ±0,4 35
    Hole size +0,08/0 5
    a min. 7,2
    H max. (Gross) 2,7
    d2 ±0,4 6,5
    Sheet thickness (s) 1-2,4
    A (gross) 5,08
    Toleranz 1 ±0,08
    B ±0,05 (gross) 6,15
    C ±0,05 (gross) 7,16
    h ±0,025 0,25
    r1 max. 0,08
    r2 max. 0,13
    Spec Sheet Specification Sheet
