Product Description
Stainless steel Self-clinching threaded studs, for stainless steel and metallic materials, Finish passivated.
Product Videos
Custom Field

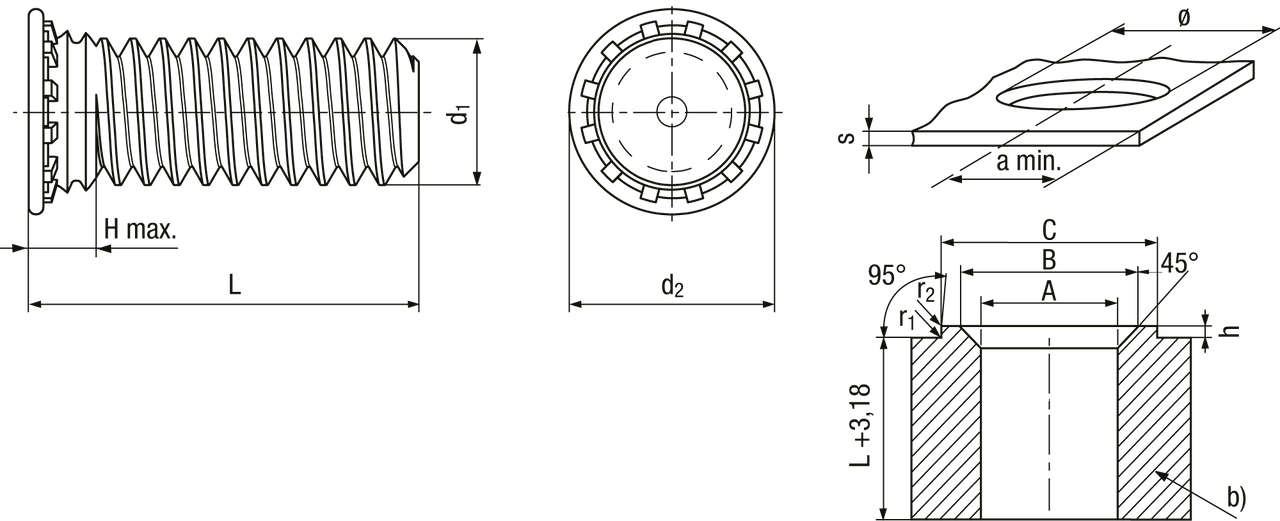

Code FHP-M6-30
Thread size (d1) M6
L ±0,4 30
Hole size +0,08/0 6
a min. 7,9
H max. (Gross) 3
d2 ±0,4 8,2
Sheet thickness (s) 1,6-3
A +0,08/0 (gross) 6,05
B ±0,05 (gross) 7,87
C ±0,05 (gross) 8,79
h ±0,025 0,51
r1 max. 0,08
r2 max. 0,13
Spec Sheet Specification Sheet
