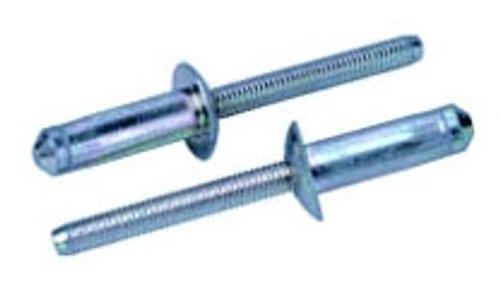

02221-00819 - Rivet by Stanley Engineered Fastening (Avdel)

02221-00819 - Rivet by Stanley Engineered Fastening (Avdel)

1/4" x 0.826" Shank, 0.525" x 0.105" Protruding Head, Steel, 0.346 to 0.425" Grip Range, Structural Break Stem, Rivet
Requires a Quote
Requires a Quote
Product Documents:
Rivet; Type Structural Break Stem; Shank Diameter 1/4 Inch; Shank Length 0.826 Inch; Head Type Protruding; Head Diameter 0.525 Inch; Head Thickness 0.105 Inch; Recommended Hole Diameter 0.264 to 0.272 Inch; Material Steel; Finish Trivalent Zinc Clear; Grip Range 0.346 to 0.425 Inch; Shear Strength 3597 Pound-Force; Tensile Strength 1978 Pound-Force; Application Automotive, Warehouse Racking, Ladder

Structural Breakstem Fasteners with Exceptional Shear and Tensile Strength and a Large Blind Side Bearing Area Against the Rear Sheet; All Steel Version Provides Exceptional Shear and Tensile Strength; Large Blind Side Bearing Area Spreads the Tail Bearing Load/Clamp Load on the Rear Sheet Reducing Creep E.g.in Plastic Material; Interference Lock Formed by a Splined Stem Provides Strong, Vibration Resistant Joints; No Damage, Electrical Problems or Rattling Caused by Loose Stems
  • 0.105 in. Head
  • Grip Range
  • 0.346 to 0.425 in.
  • Diameter
  • 0.525 in.
  • Length
  • 0.826 in. Shank
  • Shape
  • Protruding Head
  • Material
  • Steel
  • Type
  • Structural Break Stem
  • Finish
  • Trivalent Zinc Clear
  • Available Combo Deals
