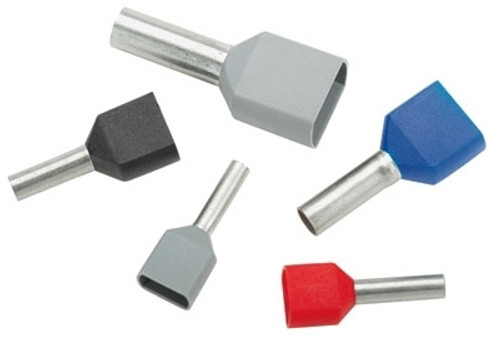

FTD82-14-C - Terminal Block Wire Ferrule by Panduit

FTD82-14-C - Terminal Block Wire Ferrule by Panduit

0.98" L, 0.18" x 0.55" Sleeve, 10 AWG, Yellow, Tin Plated Copper, Insulated, Terminal Block Wire Ferrule
Availability:
Pricing:
Order:
Requires a Quote
Requires a Quote
Product Documents:
Terminal Block Wire Ferrule; Type Insulated Ferrule; Material Tin Plated Copper; Color Yellow; Construction Standard DIN; Conductor Size 10 AWG; Sleeve Length 0.55 Inch; Sleeve Diameter 0.18 Inch Inner Diameter; Insulation Material Polypropylene; Size 0.98 Inch Length; Standard Package 100; Approval UL 486F/508A, CSA C22.2; RoHS Compliant; Maximum Wire Insulation Diameter 0.19 Inch; Wire Strip Length 25/32 Inch; Temperature Rating 221 Deg F; Flammability Rating HB; Applicable Standard DIN 46228

Twin Wire Polypropylene Insulation Housing Conform to Din Color Requirement; Funnel Entry for Faster Insertion and Lower Installed Cost; Designed with a Seamless Barrel to Contain Loose Wire Strands for Superior Termination; Eases Insertion of Wire into Terminal Block; Suitable for Limited Space Panel Application; RoHS Compliant
Color
  • Yellow
  • Length
  • 0.980 in.
  • Conductor Size
  • 10 AWG
  • Material
  • Copper
  • Type
  • Insulated Ferrule
  • Finish
  • Tin Plated
  • Style
  • Twin Wire
  • RoHS Compliant
  • yes
