Product Description

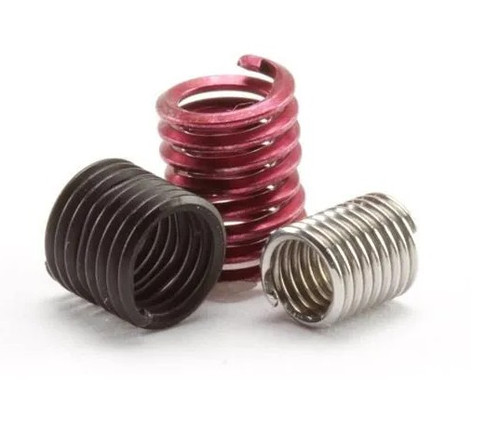

The Heli-Coil 1084-5CN050 is a precision-engineered wire thread insert designed to provide robust, permanent internal threads in lower-strength materials such as aluminum, magnesium, and molded plastics. Cold-drawn from high-quality 304 stainless steel wire with a diamond-shaped cross-section, this tanged, free-running insert adjusts dynamically to tapped holes to maximize load distribution and relieve stress concentration. It delivers exceptional corrosion resistanceand wear protection, entirely eliminating common assembly failures like thread stripping, pulling, and galling. Engineered to withstand severe vibrational impact, it forms an incredibly durable, wear-resistant fastening solution for both original equipment manufacturing and field repairs.
High-Strength Fastening Provides a permanently reinforced thread structure that prevents pulling, stripping, and shearing in soft base metals.
Corrosion and Heat Resistance Fabricated from premium 304 stainless steel to ensure long-term structural integrity in harsh environmental conditions.
Vibration Proof Stability Utilizing expanding radial spring tension, the insert locks securely into tapped holes to eliminate loosening caused by shock or severe vibration.
Wear-Resistant Threading Minimizes thread wear and friction, allowing for clean, reliable repeated assembly and disassembly cycles.
Product Specs
- SKU:
- 1084-5CN050
- Thread Size (Inch):
- 0.1969
- Thread:
- M5x0.8
- Overall Insert Length (Decimal Inch):
- 0.1969
- Tang:
- Tanged
- Material:
- 304 Stainless Steel
- Number of Free Coils:
- 4-1/8
- Length to Diameter Ratio:
- 1:1 (1D)
- Coating/Finish:
- None (Plain)
