Product Description
- Thread Code
- 032
- Thread Size
- .190-32 (#10-32)
- Thread Specification
- 2B, ASME B1.1
- Fastener Material
- 300 Series Stainless Steel
- Standard Finish
- Passivated and/or tested per ASTM A380
- For Use in Sheet Hardness
- For Use in Castings and Soft Metals HRB 70 / HB 125 or Less
- Product Category

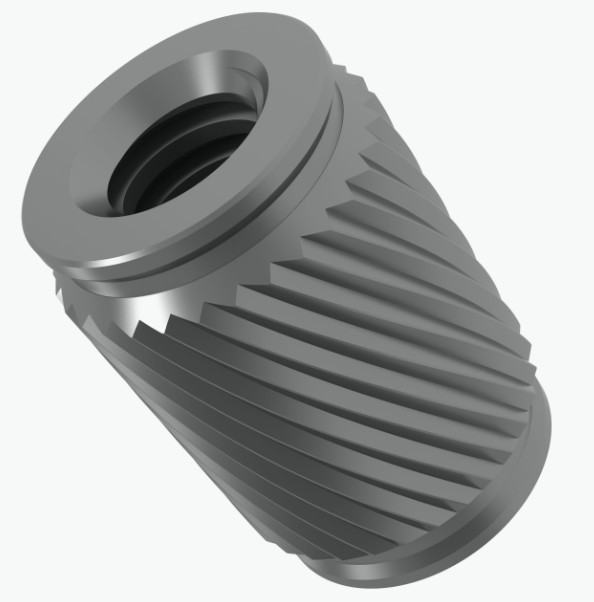

- PEM® CASTSERT® Press-in Inserts – Unified
- Thread Type
- Internal
- After Knurl E Nom_in
- 0.358in
- Brand
- PEM
- Length A ± .005_in
- 0.3in
- Min. Sheet Thickness R_in
- 0.305in
- Min Dia H of Tapered Hole at Length R (in)
- 0.33
- PEM Product Family
- CKS
- Pilot C Max._in
- 0.329in
- Product Type
- Inserts
- Straight Hole Dia. D Tolerance +/- (in)
- .003-.000
Product Specs
- SKU:
- CKS-032-1
