Product Description

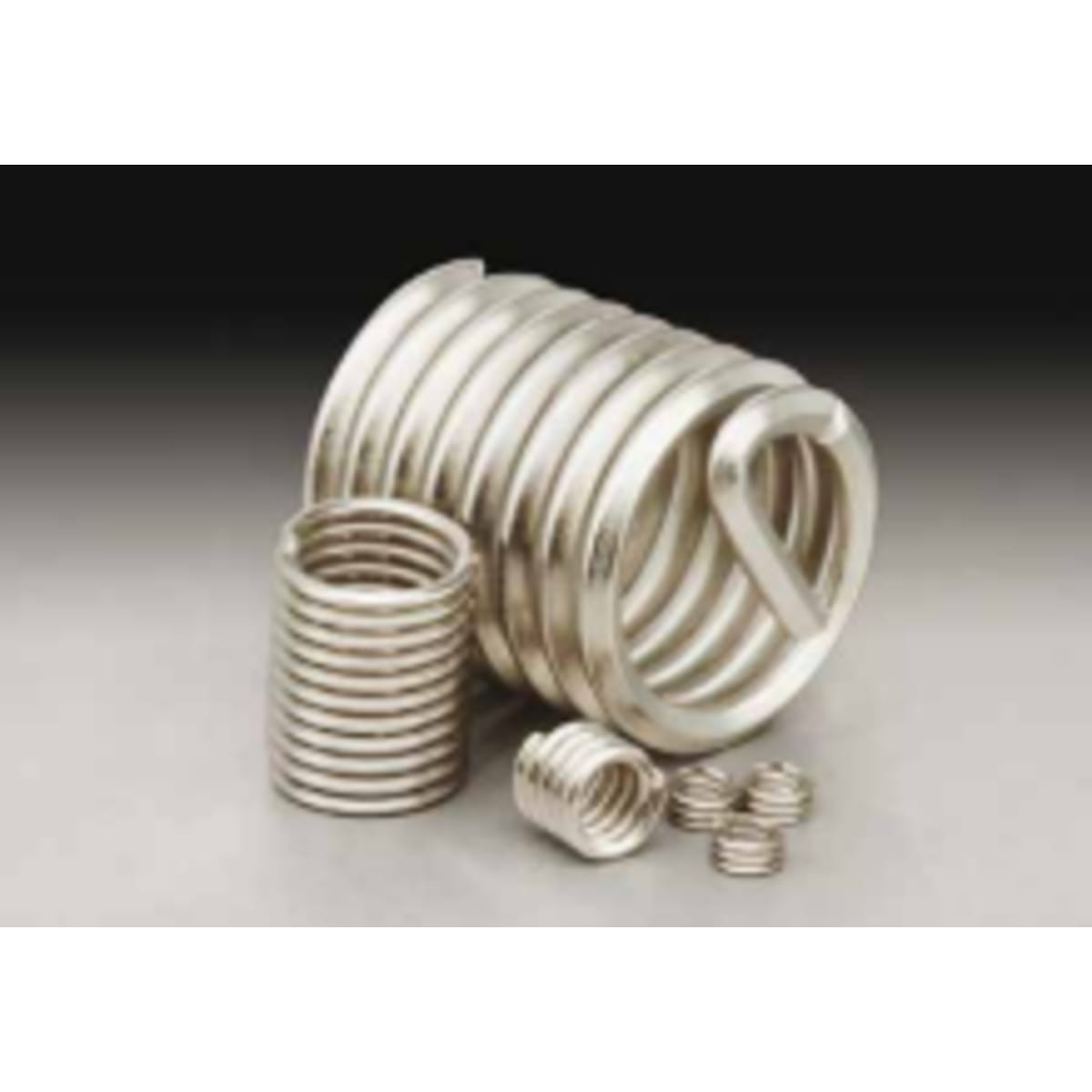

The Heli Coil 1084-4EN080 is a high-performance tanged, free-running wire thread insert engineered to provide durable internal threads for demanding applications. Precision-manufactured from advanced Nitronic 60 material, this insert delivers exceptional anti-galling properties and structural reliability.
Free-Running Design Provides a smooth, continuous thread track that allows standard mating fasteners to thread effortlessly without extra locking friction.
Nitronic 60 Material Utilizes a specialized stainless alloy that resists wear and galling, eliminating the need for additional lubricants or anti-seize coatings.
Tanged Configuration Features a standard driving tang to ensure positive mechanical engagement during installation tools and controlled depth seating.
Product Specs
- SKU:
- 1084-4EN080
- Thread Size:
- M4 x 0.7
- Thread Series:
- Coarse
- Length:
- 8 mm | 0.315 in
- Tang:
- Tanged
- Material:
- Nitronic 60
- Number of Free Coils:
- 8-5/8
- Length to Diameter Ratio:
- 2D
- Coating/Finish:
- None
