Product Description

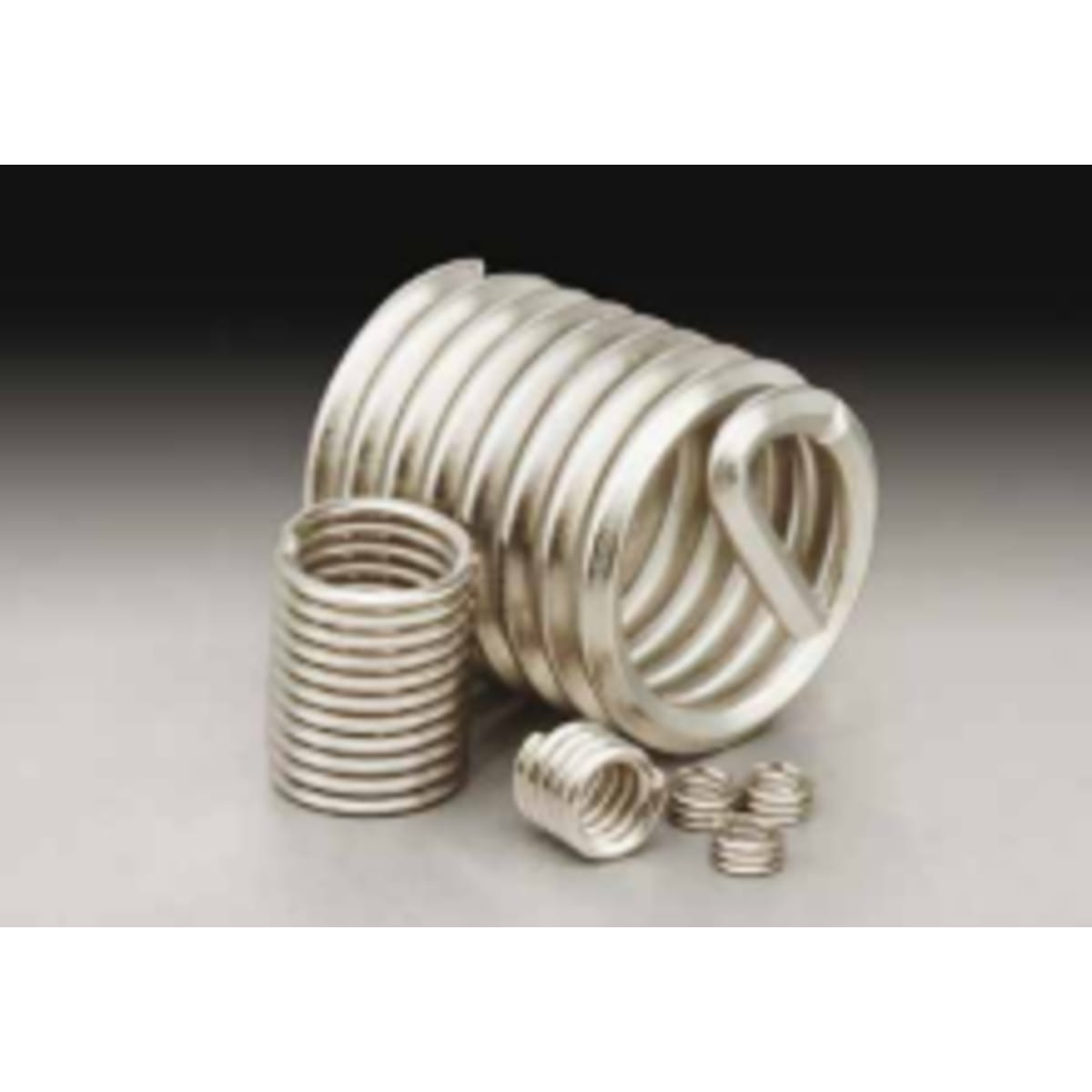

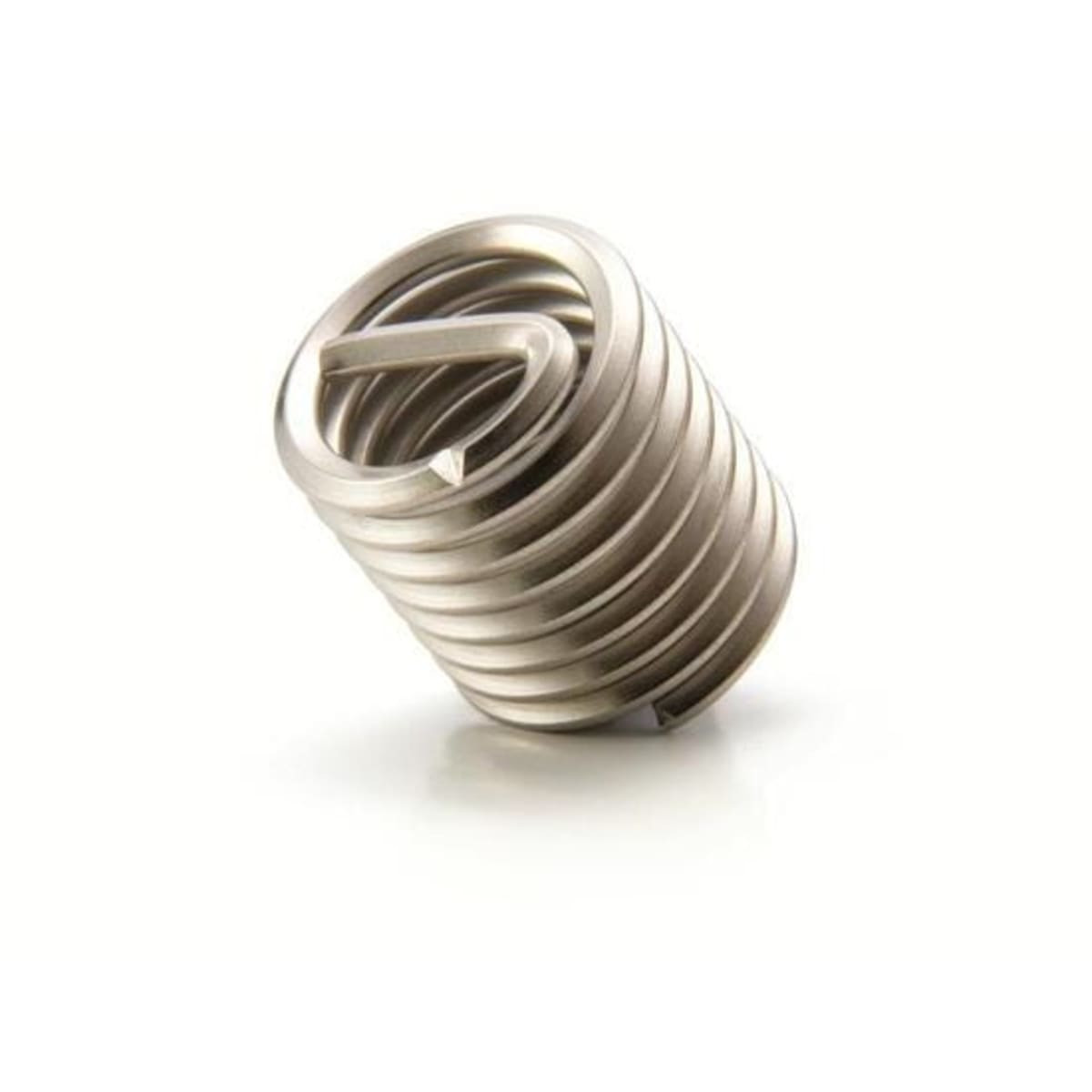

The 1084-5EN075 insert is a Heli-Coil tanged and free-running threaded insert designed for coarse thread applications. Made from Nitronic 60 material with no finish, this insert provides exceptional strength and durability for M5x0.8 thread repair and reinforcement.
Nitronic 60 Material ensures high strength and excellent wear resistance for demanding applications.
Tanged Design facilitates straightforward installation using standard tanged insertion tools.
Free-Running Style allows standard fasteners to thread through smoothly without additional torque resistance.
Uncoated Finish offers a clean, non-plated surface option for specific assembly requirements.
Product Specs
- SKU:
- 1084-5EN075
- Thread Size:
- M5 x 0.8
- Thread Series:
- Coarse
- Length:
- 7.5 mm | 0.2953 in
- Tang:
- Tanged
- Material:
- Nitronic 60
- Number of Free Coils:
- 6-7/8
- Length to Diameter Ratio:
- 1.5D
- Coating/Finish:
- None
