Product Description

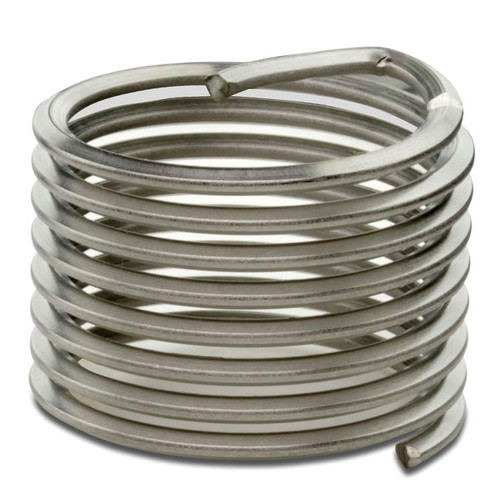

M8 x 1.25 MM, 9.8 to 10.35 MM OD, 16 MM L, Gray, Dry Film Lubricant, 304 Stainless Steel, 10-1/4-Coils, Diamond Knurled, Free Running, Tanged, Screw Threaded Insert
Screw Threaded Insert Type Diamond Knurled, Free Running, Tanged Nominal Diameter M8 Pitch 1.25 Millimeter External Thread Size 9.8 to 10.35 Millimeter Drill Size 8.4 Millimeter Overall Length 16 Millimeter Material AS7245 304 Stainless Steel Finish Dry Film Lubricant Tensile Strength 200000 to 250000 PSI Application Plastic Diameter 2 Number of Coils 10-1/4 Locking Torque 6 Millimeter Countersink 9.5 to 10.1 Millimeter Color Gray Applicable Standard MA1565, MA3279/3280/3281, NAS0276, ASME B18.29.2M-2005
Product Videos
Custom Field
Grip Range 2
Inner Diameter (I.D.) 9.8 to 10.35 mm.
Length 16 mm.
Material Dry Film Lubricant
Pitch 9.8 to 10.35 mm.
RoHS Compliant Gray
Shape M8 x 1.25 mm.
Type Diamond Knurled, Free Running, Tanged
