Product Description

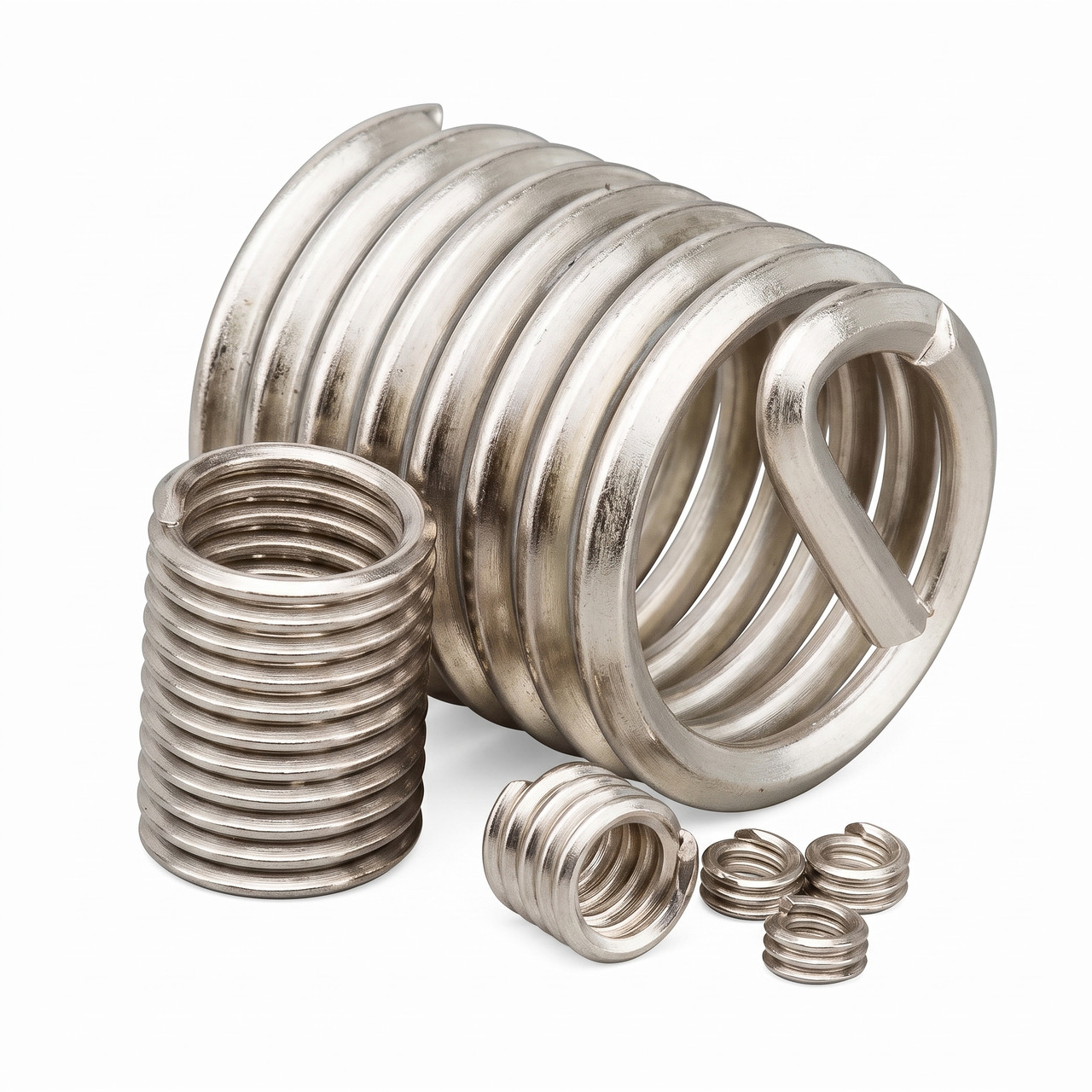

The 1185-02CN258 thread insert by Heli-Coil is a tanged, free-running wire insert designed for coarse thread applications. Constructed from durable stainless steel, this insert features a #2-56 thread size with a 3D length to diameter ratio, provided in bulk packaging without additional coating or finish.
Tanged Design Features a driving tang to facilitate efficient installation into pre-tapped holes.
Free-Running Insert Provides smooth, free-spinning engagement with standard coarse thread fasteners.
Stainless Steel Construction Manufactured from high-strength stainless steel to ensure robust, long-lasting thread reinforcement.
3D Length Ratio Designed with a 3D length to diameter ratio, resulting in a total body length of 0.258 in (6.5532 mm).
Product Specs
- SKU:
- 1185-02CN258
- Thread Size:
- #2-56
- Thread Series:
- UNC
- Length:
- 0.258 in | 6.5532 mm
- Tang:
- Tanged
- Material:
- Stainless Steel
- Number of Free Coils:
- 11-7/8
- Length to Diameter Ratio:
- 3D
- Coating/Finish:
- None
