Product Description

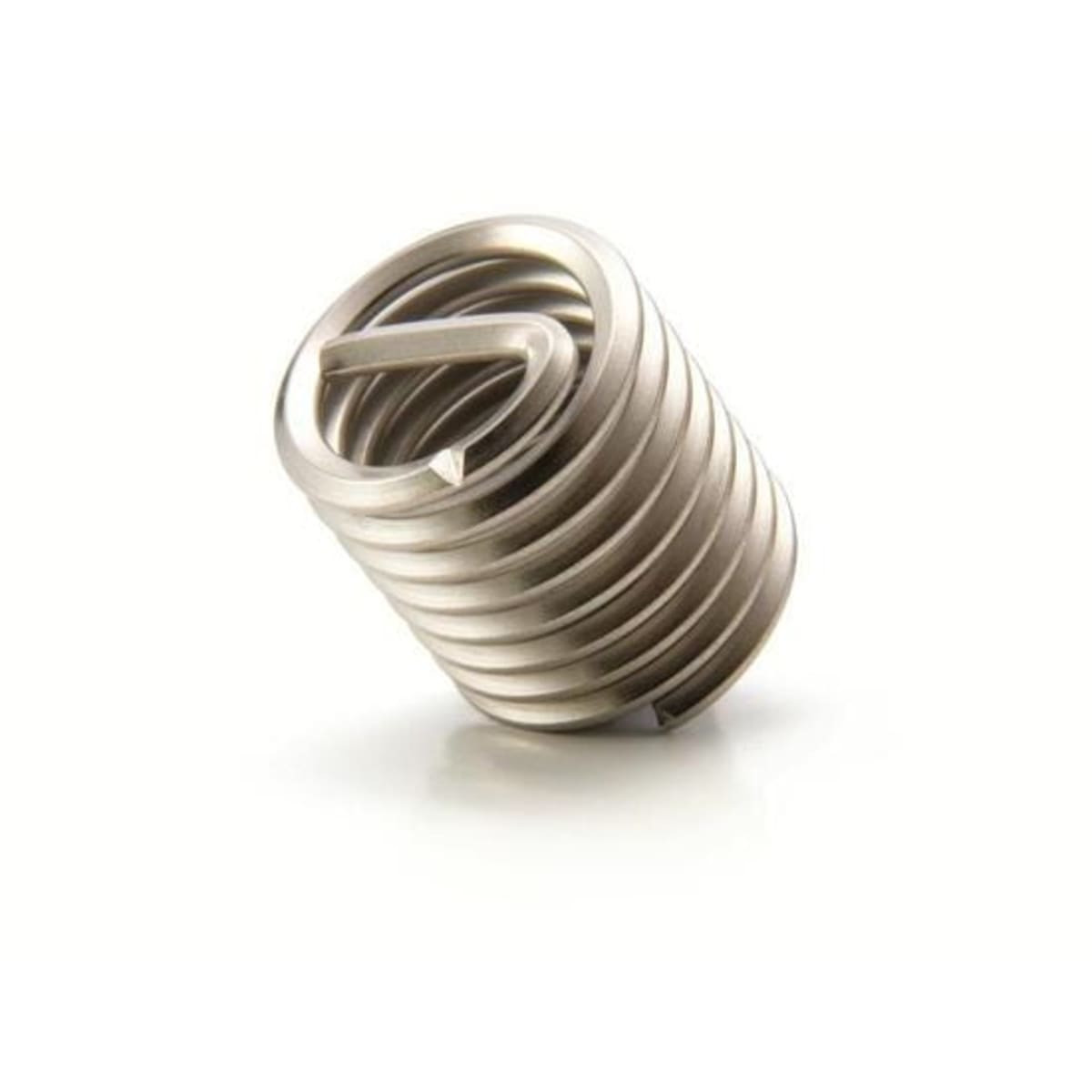

The Heli-Coil 1185-04EN168 is a specialized free-running wire thread insert designed to create high-strength, permanent internal threads in extreme-temperature environments. Formed from high-performance Inconel X-750 alloy wire with a diamond cross-section, this tanged insert retains superior tensile strength and oxidation resistance under severe thermal stress. Featuring a streamlined free-running design, it allows male fasteners to thread smoothly without rotational friction until final seating torque is applied. The specialized coil profile distributes clamping loads uniformly across the parent material, delivering high-temperature stripping protection and galling resistance in critical aerospace and high-heat assemblies.
Free-Running Configuration Permits uninhibited rotation of the mating bolt through the helical profile without prevailing torque until final torque is established.
Inconel X-750 Alloy Construction Provides outstanding structural stability, corrosion resistance, and thermal strength in high-temperature operating environments.
Integrated Drive TangEquipped with a standardized driving tang on the leading coil for reliable tool engagement and precise insertion depth control.
Silver Plated Finish Pre-plated with silver to minimize thread friction, prevent high-temperature galling, and optimize torque-tension consistency during installation.
Product Specs
- SKU:
- 1185-04EN168
- Thread Size (Inch):
- 0.112
- Thread:
- #4-40 UNC
- Overall Insert Length (Decimal Inch):
- 0.168
- Tang:
- Tanged
- Material:
- Inconel X-750
- Number of Free Coils:
- 4-3/4
- Length to Diameter Ratio:
- 1.5:1 (1.5D Nominal Length)
- Coating/Finish:
- Silver Plated
