Product Description

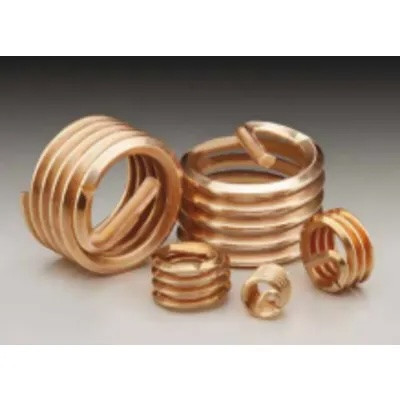

The Heli-Coil® 1185-06BN276 is a tangless, free-running wire thread insert precision-manufactured from Phosphor Bronze. Engineered to create durable, highly conductive #6-32 UNC threads in soft parent materials, this non-magnetic insert provides outstanding corrosion resistance and excellent electrical conductivity. Featuring an advanced tangless design, it completely eliminates tang break-off and removal steps, streamlining assembly workflows and eliminating foreign object debris (FOD) hazards in sensitive electrical, electronic, and marine applications.
Tangless Wire Construction eliminates tang removal and retrieval steps, reducing installation time and preventing foreign object debris (FOD) hazards in sensitive components.
Phosphor Bronze Material offers exceptional electrical conductivity, non-magnetic properties, and superior resistance to saltwater and atmospheric corrosion.
Free-Running Thread Profile allows standard male fasteners to thread smoothly through the insert without friction locking.
#6-32 UNC Coarse Threading reinforces soft parent metals and protects tapped holes against wear, stripping, and galling.
2D Nominal Length Ratio optimizes engagement depth to maximize pull-out strength in compact joint designs.
Product Specs
- SKU:
- 1185-06BN276
- Thread Size (Inch):
- #6-32
- Thread:
- UNC
- Overall Insert Length (Decimal Inch):
- 0.276
- Tang:
- Tangless
- Material:
- Phosphor Bronze
- Number of Free Coils:
- 6-3/4
- Length to Diameter Ratio:
- 2:1
