Product Description

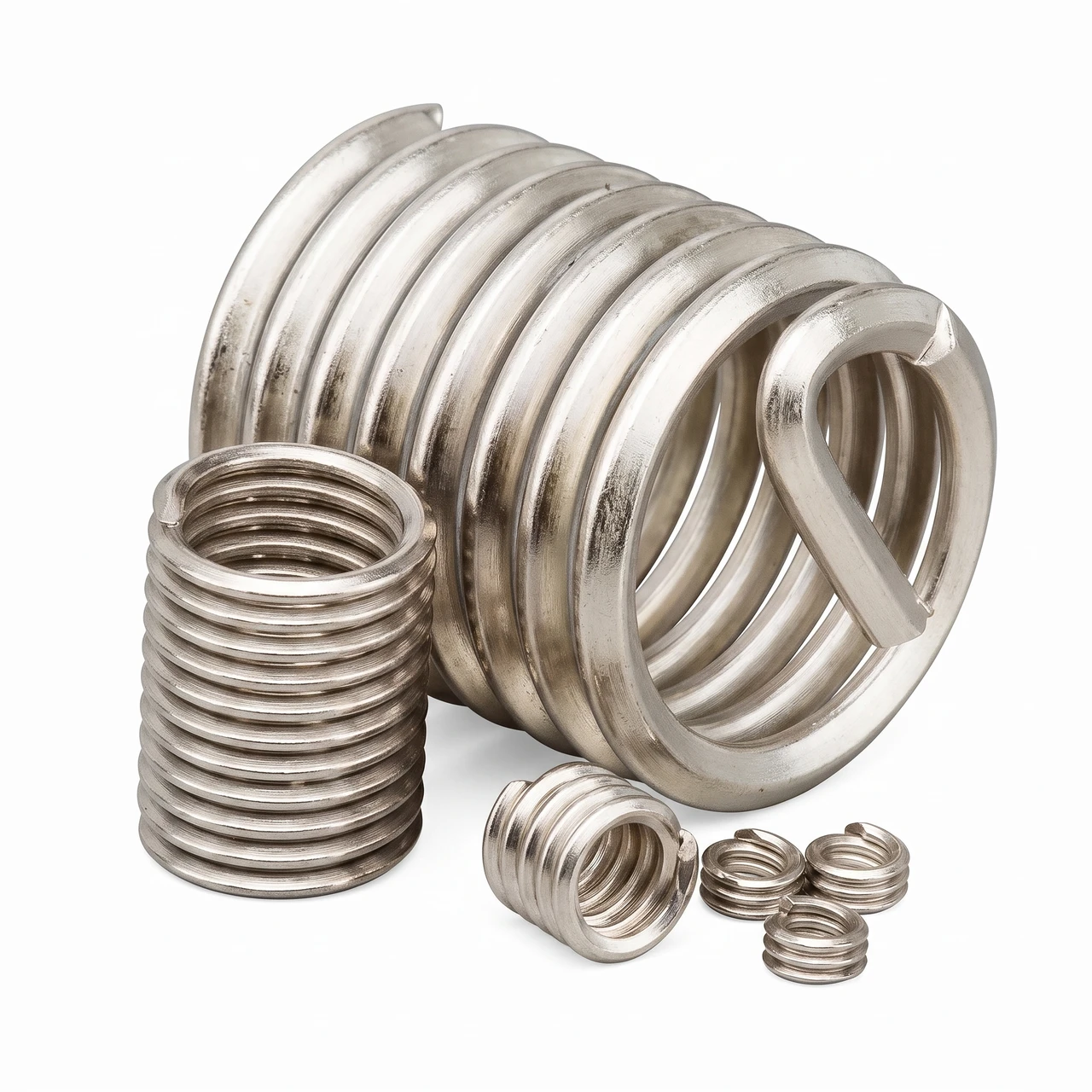

The 1185-06CN138 is a high-performance Heli-Coil thread repair solution engineered to provide strong, permanent internal threads in soft metals or damaged assemblies. Made from durable stainless steel, this tanged free-running insert offers excellent wear resistance without any extra surface treatment. Its #6-32 UNC coarse thread design with a 0.138 in | 3.5052 mm body length ensures precision fit and reliable mechanical fastening.
Tanged Design Features a tanged drive style to facilitate easy installation into tapped holes.
Stainless Steel Construction Manufactured from high-grade stainless steel to deliver superior thread strength and durability.
Free-Running Insert Type Provides a smooth, free-running thread profile that allows bolts to turn freely while maintaining proper tension.
Coarse Threading Features a standardized #6-32 UNC coarse thread pattern suited for standard fastening applications.
Product Specs
- SKU:
- 1185-06CN138
- Thread Size:
- #6-32
- Thread Series:
- UNC
- Length:
- 0.138 in | 3.5052 mm
- Tang:
- Tanged
- Material:
- Stainless Steel
- Number of Free Coils:
- 2-3/4
- Length to Diameter Ratio:
- 1D
- Coating/Finish:
- None
