Product Description

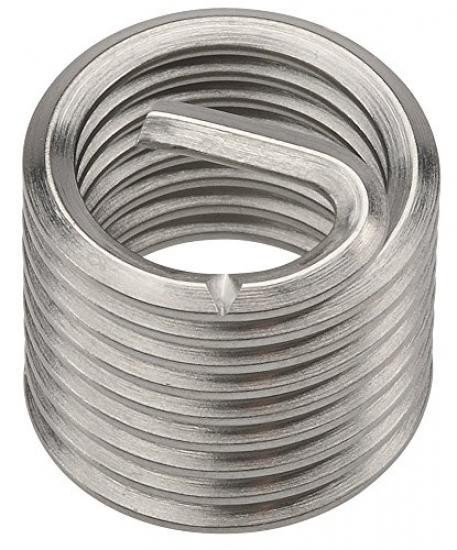

The Heli-Coil 1185-06CN138SF is a high-precision free-running wire thread insert supplied in a high-efficiency strip-feed format designed for high-volume automated and power-tool installation. Precision-formed from cold-drawn 304 stainless steel wire with a uniform diamond cross-section, this tanged insert establishes permanent, wear-resistant internal threads in soft metals, aluminum, and composite materials. Featuring an unobstructed free-running configuration, it permits male fasteners to thread smoothly without added prevailing torque or rotational friction until final clamp load is applied. Packaged on continuous plastic reels, the strip-feed presentation optimizes production workflows, maximizing assembly throughput and minimizing part handling while providing long-term joint durability and protection against thread stripping.
Strip-Feed Packaging Continuous reel-mounted format optimized for automated or power installation tooling, significantly increasing production efficiency and reducing operator loading time.
Free-Running Dynamic Rotation Delivers an uninhibited thread path that allows standard male hardware to spin freely through the helical profile without added friction or torque resistance.
Integrated Drive Tang Built with a robust drive tang on the leading coil to provide positive tool engagement for controlled and accurate insertion depth setting.
304 Stainless Steel Resilience Manufactured from work-hardened, corrosion-resistant steel wire to protect soft host materials against internal thread stripping, galling, and wear.
Product Specs
- SKU:
- 1185-06CN138SF
- Thread Size (Inch):
- 0.138
- Thread:
- #6-32 UNC
- Overall Insert Length (Decimal Inch):
- 0.138
- Tang:
- Tanged
- Material:
- 304 Stainless Steel (CRES)
- Number of Free Coils:
- 2-3/4
- Length to Diameter Ratio:
- 1:1 (1D Nominal Length)
- Coating/Finish:
- None (Plain)
