Product Description

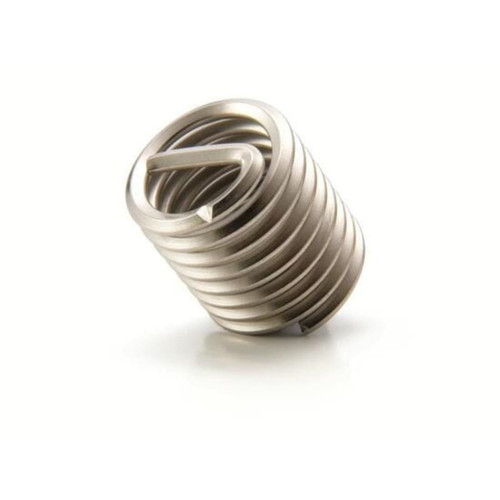

#6-32 TPI, 0.178 to 0.193" OD, 0.276" L, Nitronic 60, 6-7/8-Coils, Diamond Knurled, Free Running, Tanged, Screw Threaded Insert
Screw Threaded Insert Type Diamond Knurled, Free Running, Tanged Nominal Diameter #6 TPI 32 Thread Series UNC-2A External Thread Size 0.178 to 0.193 Inch Drill Size #25 Overall Length 0.276 Inch Material UNS S21800 Nitronic 60 Tensile Strength 200000 PSI Application Plastic Diameter 2 Number of Coils 6-7/8 Locking Torque 6 Inch-Pound Countersink 0.18 to 0.21 Inch Applicable Standard NASM8846, NAS1130, ASME B18.29.1 The 1185-06EN276 - Screw Threaded Insert by Helicoil Stanley Engineered Fastening is a premium-quality insert meticulously engineered for applications demanding exceptional durability and a refined appearance. Crafted from carbon steel, this insert offers excellent strength and durability. Its diamond knurled, free-running, tanged design ensures straightforward installation and a secure, flush fit. With an M6 size, 1.0 mm pitch, and 27 mm length, this insert is versatile for various applications. Features: -Carbon Steel Construction -Diamond Knurled, Free Running, Tanged Design -Fully Threaded for Superior Grip -Precision Engineered for High Performance Applications: -Construction -Machinery -Automotive -DIY Projects Technical Specifications: -Nominal Diameter: M6 -Pitch: 1.0 Millimeter -External Thread Size: 6.4 to 6.6 Millimeter -Drill Size: 6.2 Millimeter -Overall Length: 27 Millimeter -Material: Carbon Steel -Tensile Strength: 100,000 to 150,000 PSI Ordering Information: -Part Number: 1185-06EN276 -Price: Starting at $0.1942 for 1000 quantity -Quantity Discounts Available -Weight per Package: Based on quantity ordered Contact Information: -Bossard Americas -Phone: 1-800-289-2779 -Website: americas.bossard.com
