Product Description

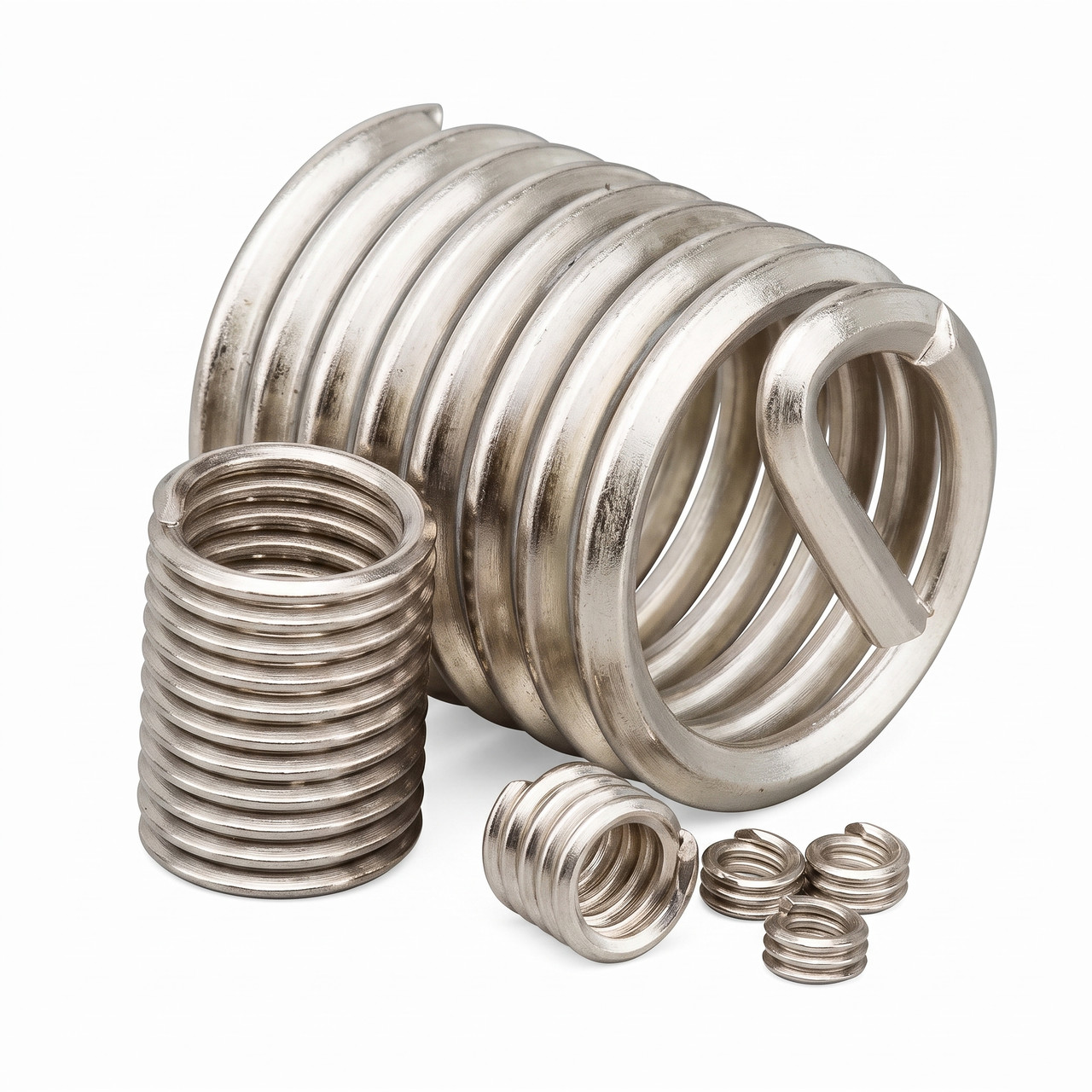

The HELI-COIL 1185-3CN570 is a high-strength free-running tanged wire thread insert designed to create permanent, wear-resistant internal threads in soft metal parent materials. Precision-formed from 304 stainless steel, this #10-24 UNC thread insert features a 3.0D nominal length with a plain finish, providing maximum thread engagement depth to protect receiving holes against thread stripping, thermal degradation, and heavy structural loads.
Free-Running Design enables smooth, unhindered bolt assembly while evenly distributing static and dynamic loads across all engaged threads.
304 Stainless Steel delivers excellent corrosion resistance and mechanical strength across standard industrial, aerospace, and defense applications.
3.0D Nominal Length offers maximum thread engagement depth to optimize load-carrying capacity in low-shear metal alloys.
Precision Tanged Structure features a built-in driving prong to facilitate fast, efficient installation using standard manual or power tooling.
Load-Balancing Diamond Wire compensates for pitch and lead errors to increase overall shear strength and joint reliability.
Product Specs
- SKU:
- 1185-3CN570
- Thread Size (Inch):
- #10-24 (0.190 Inch)
- Thread:
- UNC (Unified Coarse Thread)
- Overall Insert Length (Decimal Inch):
- 0.570
- Tang:
- Tanged
- Material:
- 304 Stainless Steel
- Number of Free Coils:
- 12.00
- Length to Diameter Ratio:
- 3.0D
- Coating/Finish:
- Plain
