Product Description

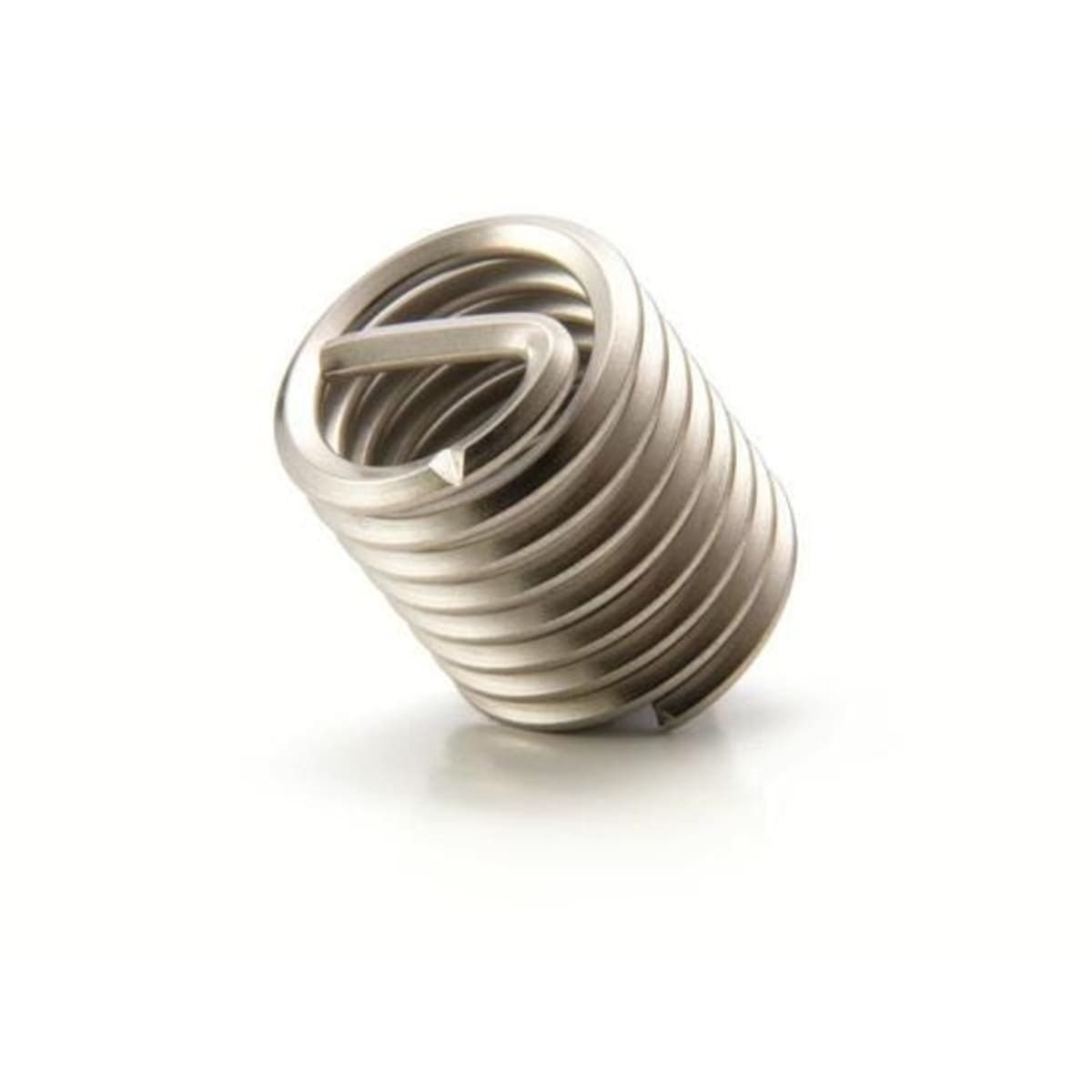

1/4"-20 TPI, 0.31 to 0.33" OD, 0.375" L, Nitronic 60, 5-3/4-Coils, Diamond Knurled, Free Running, Tanged, Screw Threaded Insert
Screw Threaded Insert Type Diamond Knurled, Free Running, Tanged Nominal Diameter 1/4 Inch TPI 20 Thread Series UNC-2A External Thread Size 0.31 to 0.33 Inch Drill Size H Overall Length 0.375 Inch Material UNS S21800 Nitronic 60 Tensile Strength 200000 PSI Application Plastic Diameter 1.5 Number of Coils 5-3/4 Locking Torque 30 Inch-Pound Countersink 0.31 to 0.34 Inch Applicable Standard NASM8846, NAS1130, ASME B18.29.1
Product Specs
- SKU:
- 1185-4EN375
- Grip Range:
- 1.5
- Inner Diameter (I.D.):
- 0.31 to 0.33 in.
- Length:
- 0.375 in.
- Pitch:
- 0.31 to 0.33 in.
- Thread:
- 1/4 in.-20 TPI
- Type:
- Diamond Knurled, Free Running, Tanged
