Product Description

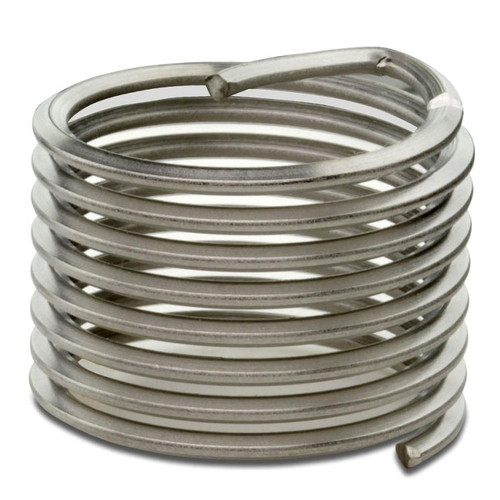

5/16"-18 TPI, 0.38 to 0.4" OD, 0.625" L, Gray, Dry Film Lubricant, 304 Stainless Steel, 9-1/4-Coils, Diamond Knurled, Free Running, Tanged, Screw Threaded Insert
Screw Threaded Insert Type Diamond Knurled, Free Running, Tanged Nominal Diameter 5/16 Inch TPI 18 Thread Series UNC-2A External Thread Size 0.38 to 0.4 Inch Drill Size Q Overall Length 0.625 Inch Material AS7245 304 Stainless Steel Finish Dry Film Lubricant Tensile Strength 200000 to 250000 PSI Application Plastic Diameter 2 Number of Coils 9-1/4 Locking Torque 60 Inch-Pound Countersink 0.38 to 0.41 Inch Color Gray Applicable Standard NASM8846, NAS1130, ASME B18.29.1
Product Videos
Custom Field
Grip Range 2
Inner Diameter (I.D.) 0.38 to 0.4 in.
Length 0.625 in.
Material Dry Film Lubricant
Pitch 0.38 to 0.4 in.
RoHS Compliant Gray
Thread 5/16 in.-18 TPI
Type Diamond Knurled, Free Running, Tanged
