Product Description

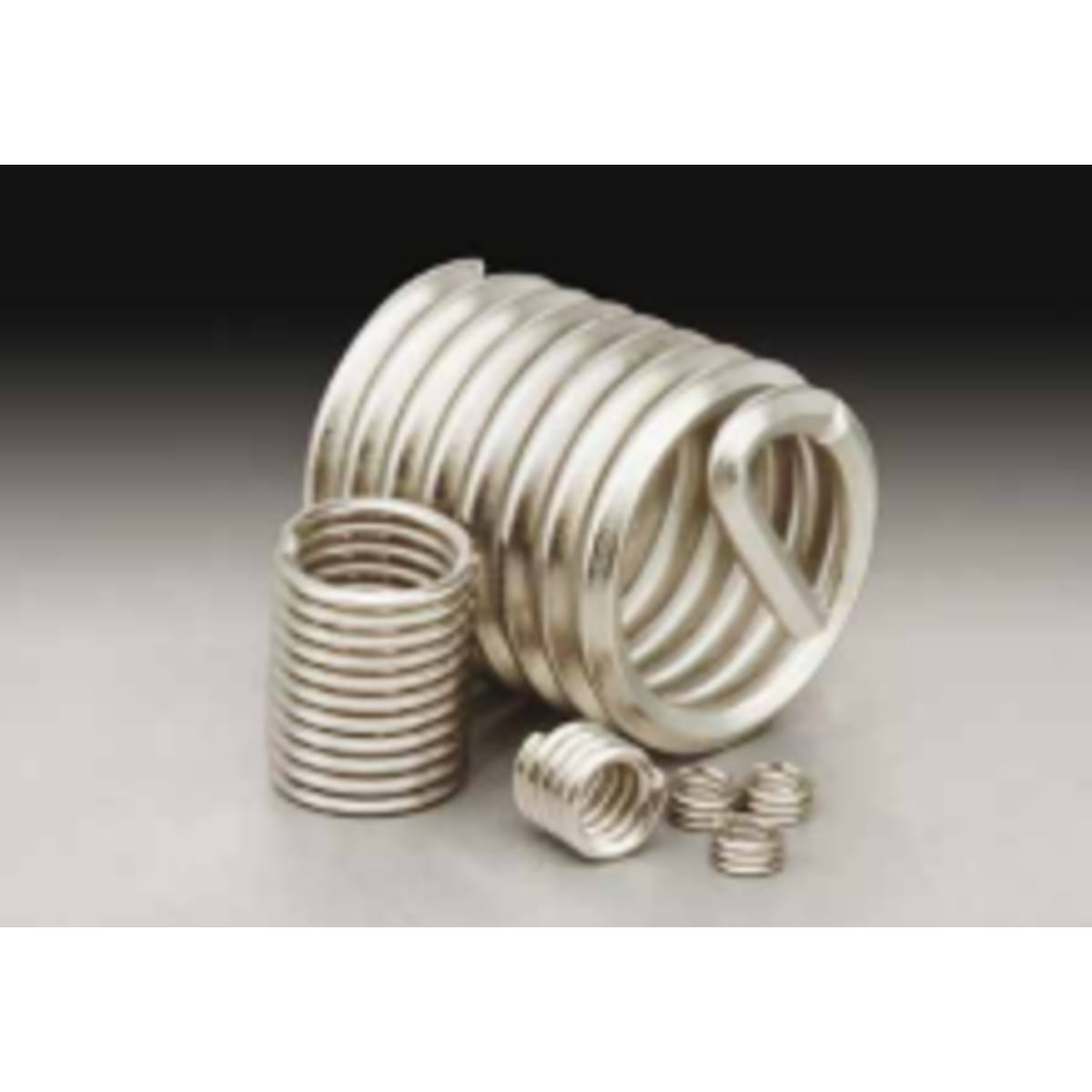

The Heli-Coil 1185-5EN312 is a high-strength, military-grade free-running wire thread insert designed to generate permanent, wear-resistant internal threads in soft host materials. Precision-formed from cold-drawn Inconel X-750 wire with a diamond-shaped cross-section, this tanged insert is engineered specifically for high-temperature and extreme-environment applications. Featuring a streamlined free-running configuration, it allows smooth, uninhibited rotation of the male bolt until final seating torque is applied. Its specialized wire profile distributes static and dynamic load stresses evenly across the parent material, delivering exceptional stripping protection, corrosion resistance, and thermal durability.
Free-Running Profile Enables the mating fastener to spin freely through the helical coils without impedance until final installation clamping force is applied.
High-Temperature Inconel Alloy Constructed from Inconel X-750 wire to maintain structural integrity, high tensile strength, and oxidation resistance at elevated operating temperatures.
Standard Driving Tang Equipped with a robust drive tang integrated into the leading coil for positive tool engagement and precise depth setting during insertion.
Uniform Stress Distribution Expands dynamically in the tapped parent hole to eliminate localized stress concentrations and protect lightweight alloys from thread wear or stripping.
Product Specs
- SKU:
- 1185-5EN312
- Thread Size (Inch):
- 0.3125
- Thread:
- 5/16-18 UNC
- Overall Insert Length (Decimal Inch):
- 0.312
- Tang:
- Tanged
- Material:
- Inconel X-750
- Number of Free Coils:
- 4-3/4
- Length to Diameter Ratio:
- 1:1 (1D Nominal Length)
- Coating/Finish:
- Silver Plated
