Product Description

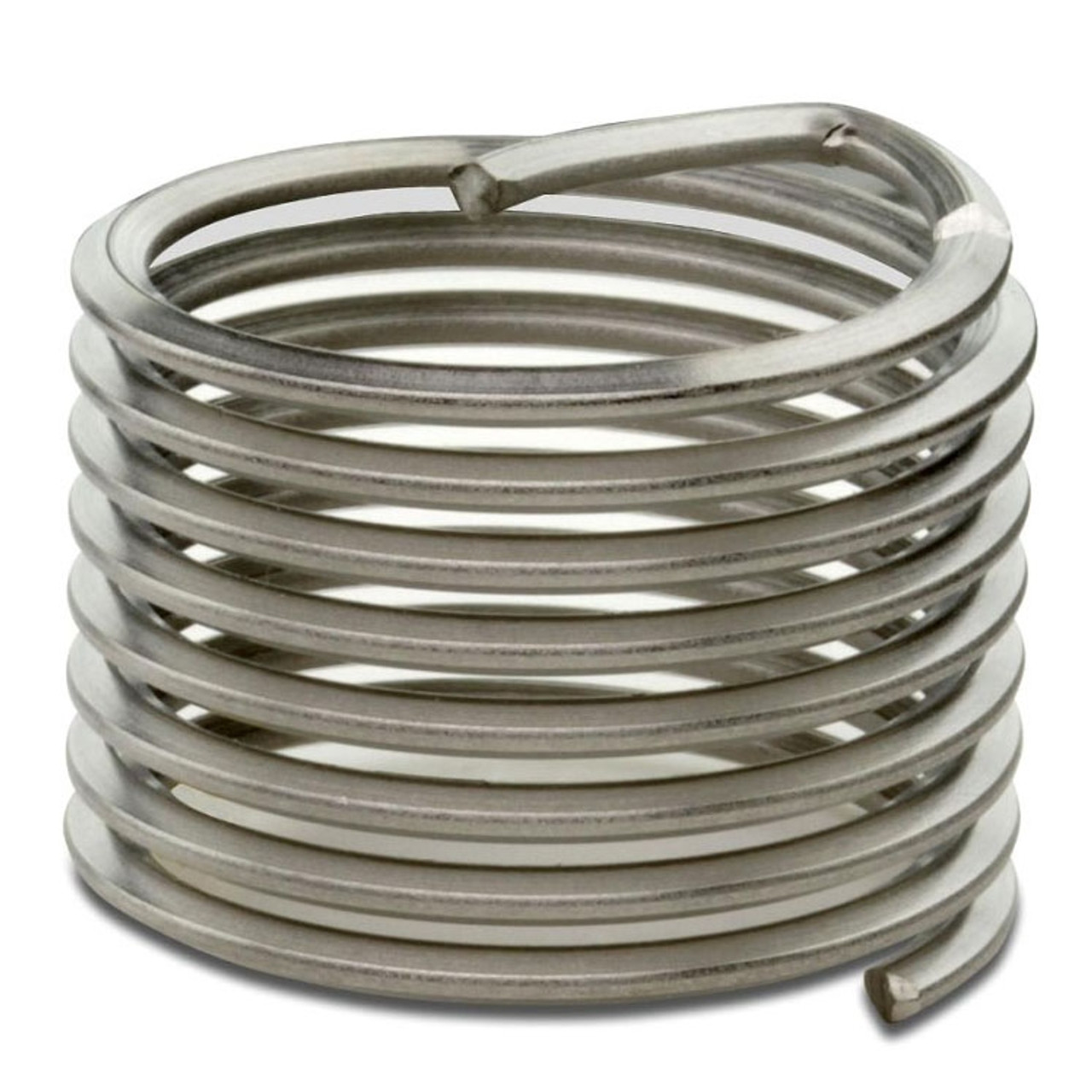

#10-32 TPI, 0.236 to 0.256" OD, 0.19" L, Primer Free II Coated, 304 Stainless Steel, 4-1/8-Coils, Diamond Knurled, Free Running, Tanged, Screw Threaded Insert
Screw Threaded Insert Type Diamond Knurled, Free Running, Tanged Nominal Diameter #10 TPI 32 Thread Series UNF-2A External Thread Size 0.236 to 0.256 Inch Drill Size 13/64 Inch Overall Length 0.19 Inch Material AS7245 304 Stainless Steel Finish Primer Free II Coated Tensile Strength 200000 to 250000 PSI Application Plastic RoHS Compliant Diameter 1 Number of Coils 4-1/8 Locking Torque 13 Inch-Pound Countersink 0.23 to 0.26 Inch Applicable Standard NASM8846, NAS1130, ASME B18.29.1
Product Specs
- SKU:
- 1191-3CNPF190
- Grip Range:
- 1
- Height:
- Yes
- Inner Diameter (I.D.):
- 0.236 to 0.256 in.
- Length:
- 0.19 in.
- Material:
- Primer Free II Coated
- Pitch:
- 0.236 to 0.256 in.
- Thread:
- #10-32 TPI
- Type:
- Diamond Knurled, Free Running, Tanged
