Product Description

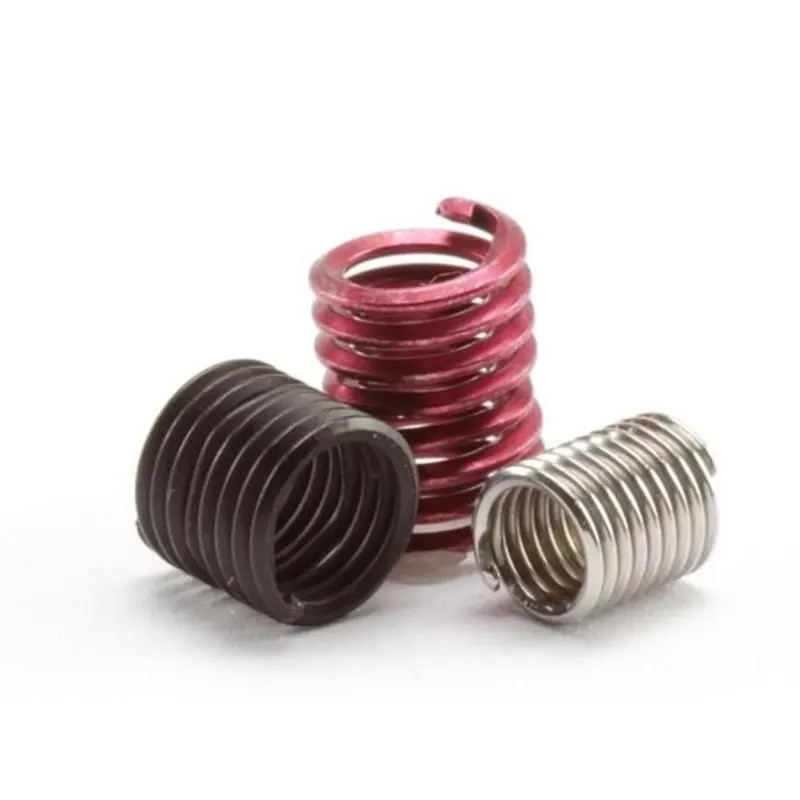

The 3585-4CN500 is a Heli-Coil tanged, screw-locking insert designed for secure and reliable thread reinforcement. Constructed from high-strength stainless steel, this coarse thread insert features a 1/4"-20 UNC thread size to prevent fastener loosening under vibration and stress.
Screw-Locking Insert Type provides strong, locking action to secure threaded fasteners safely in place.
Stainless Steel Material delivers dependable durability and corrosion resistance for demanding fastening applications.
Tanged Design facilitates straightforward installation using standard tanged insertion tools.
Coarse Thread Configuration offers robust thread holding power in a 1/4"-20 UNC thread pitch.
Product Specs
- SKU:
- 3585-4CN500
- Thread Size:
- 1/4"-20
- Thread Series:
- UNC
- Length:
- 0.5 in | 12.7000 mm
- Tang:
- Tanged
- Material:
- Stainless Steel
- Number of Free Coils:
- 8
- Length to Diameter Ratio:
- 2D
- Coating/Finish:
- None
