Product Description

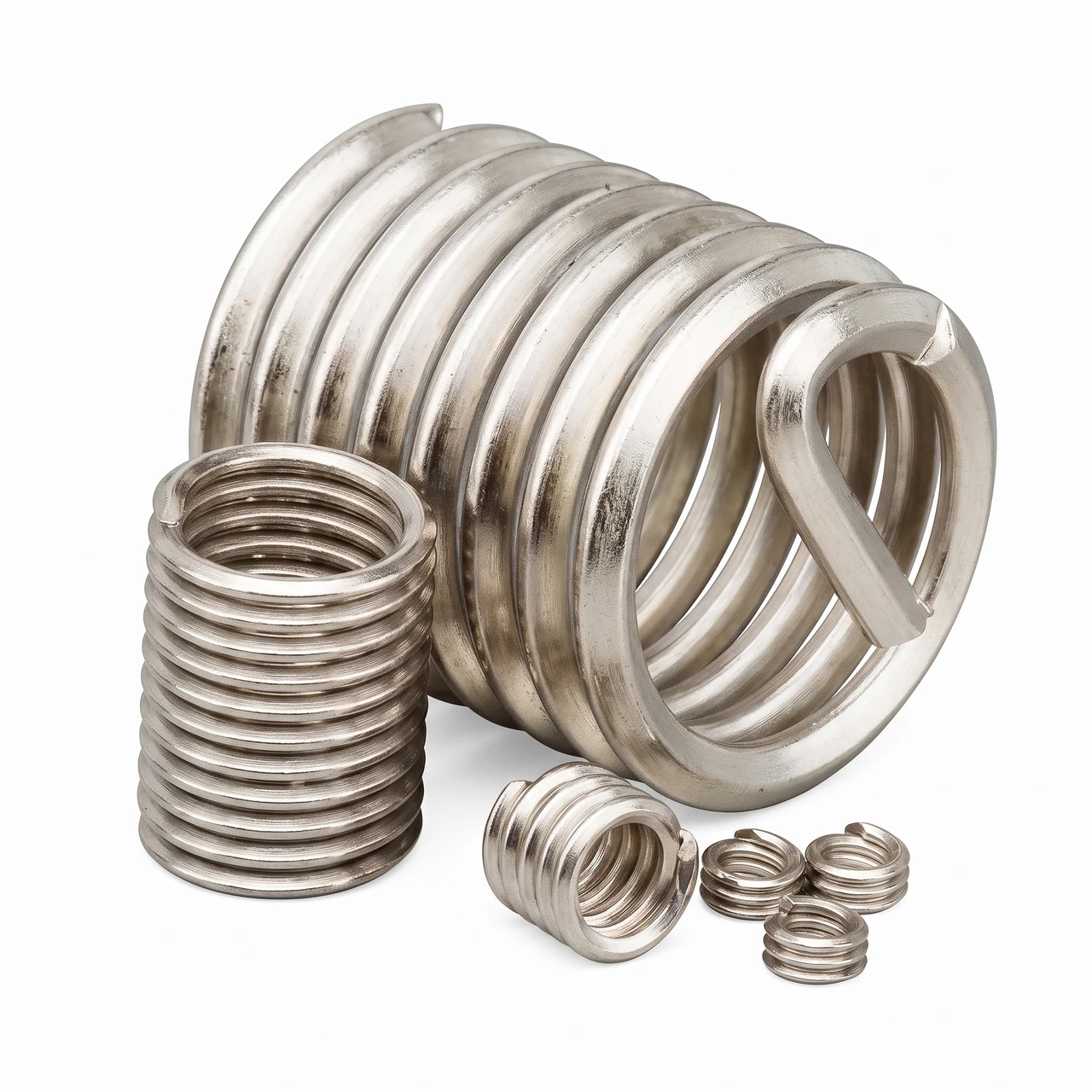

SKU 3591-06CN207 features the Heli Coil Tanged Screw-Locking, Fine Thread Insert, engineered to provide superior thread strength and reliability. Crafted from durable stainless steel, this component utilizes a screw-locking mechanism to prevent fastener loosening under vibration. Designed with a tanged style and a 1.5D length to diameter ratio, it offers precise #6-40 fine thread engagement for demanding industrial applications.
Screw-Locking Design: Incorporates a prevailing torque locking coil that grips the mating fastener to resist vibration-induced loosening.
Stainless Steel Construction: Provides superior durability, wear resistance, and protection against harsh environmental conditions.
Tanged Configuration: Features a traditional tang design that allows for easy driving and installation with standard tooling.
Fine Thread Precision: Designed with a #6-40 thread size and a 1.5D length-to-diameter ratio to ensure a precise, reliable hold.
Product Specs
- SKU:
- 3591-06CN207
- Thread Size:
- #6-40
- Thread Series:
- UNF
- Length:
- 0.207 in | 5.2578 mm
- Tang:
- Tanged
- Material:
- Stainless Steel
- Number of Free Coils:
- 6
- Length to Diameter Ratio:
- 1.5D
- Coating/Finish:
- None
