Product Description

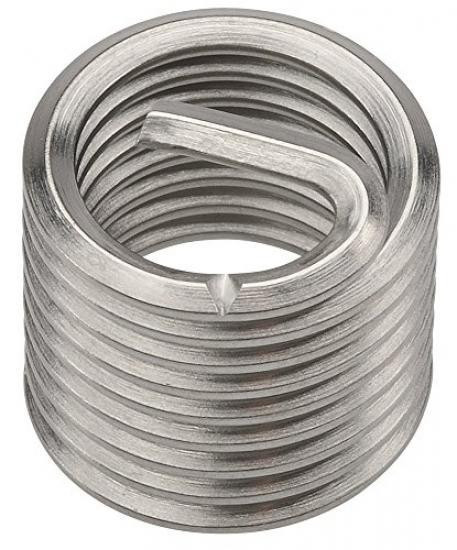

The 3591-2CN246 Heli Coil Tanged Screw-Locking, Fine Thread Insert provides durable internal thread reinforcement for high-reliability applications. Constructed from Stainless Steel, this tanged, screw-locking insert offers exceptional resistance to wear and thread stripping while securely locking fasteners in place. Featuring an #8-36 thread size with a 1.5D length to diameter ratio (0.246 in | 6.2484 mm body length), it comes without any finish and is available in bulk packaging.
Stainless Steel Material provides high strength and corrosion resistance for long-lasting thread reinforcement.
Screw-Locking Mechanism holds fasteners securely in place to prevent loosening from vibration or impact.
Tanged Design facilitates straightforward installation using standard tanged insertion tools.
Fine Thread Pitch ensures precise fit and strong thread engagement for #8-36 UNF applications.
Product Specs
- SKU:
- 3591-2CN246
- Thread Size:
- #8-36
- Thread Series:
- UNF
- Length:
- 0.246 in | 6.2484 mm
- Tang:
- Tanged
- Material:
- Stainless Steel
- Number of Free Coils:
- 5-1/2
- Length to Diameter Ratio:
- 1.5D
- Coating/Finish:
- None
