Product Description

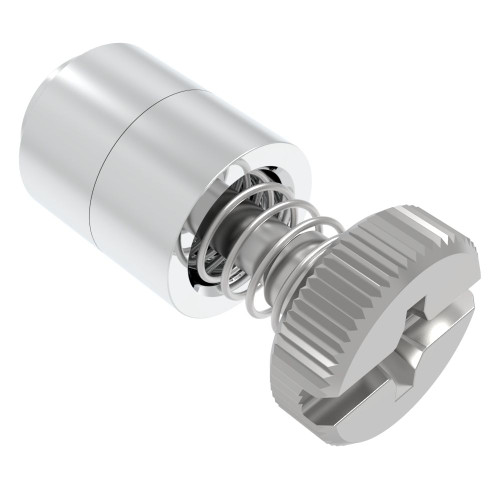

The SOUTHCO 52-19-11-4 is a high-performance Captive Screw from the 52 Series. This hardware solution is designed to remain permanently attached to the panel or equipment frame, even when unscrewed, preventing lost hardware and damage to sensitive internal components.
Engineered for precision and durability, this series features a spring-loaded design that provides a consistent, reliable grip and smooth operation for repeated access in demanding industrial and electronic environments.
Hardware Retention: The captive design ensures that the screw stays within the panel assembly, eliminating the risk of loose hardware falling into circuitry or moving parts.
Ease of Access: The knurled head allows for quick finger operation, while the slotted drive permits higher torque application using standard tools.
Corrosion Resistance: The bright chromate zinc plating provides essential protection against oxidation in indoor and controlled environments.
Common Uses: Ideal for server racks, telecommunications equipment, industrial control panels, and medical device enclosures where frequent maintenance or panel removal is required.
Product Specs
- SKU:
- 52-19-11-4
- Manufacturer:
- Southco
- Part Number:
- 52-19-11-4
- Product Series:
- 52 Series - Captive Screws
- Screw Size / Thread:
- #10-32
- Material:
- Carbon Steel
- Finish:
- Zinc Plate, Bright Chromate
- Head Style:
- Knurled / Slotted
- Installation Style:
- Press-in
- Panel Thickness Range:
- 0.9 mm (.036 in) - 3.2 mm (.125 in)
- Screw Length (Nominal):
- 15.9 mm (.625 in)
- Spring Loaded:
- Yes
