Product Description

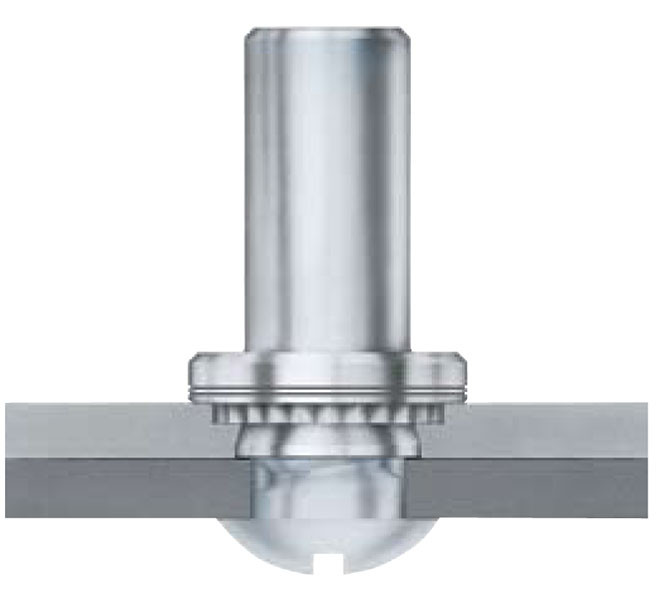

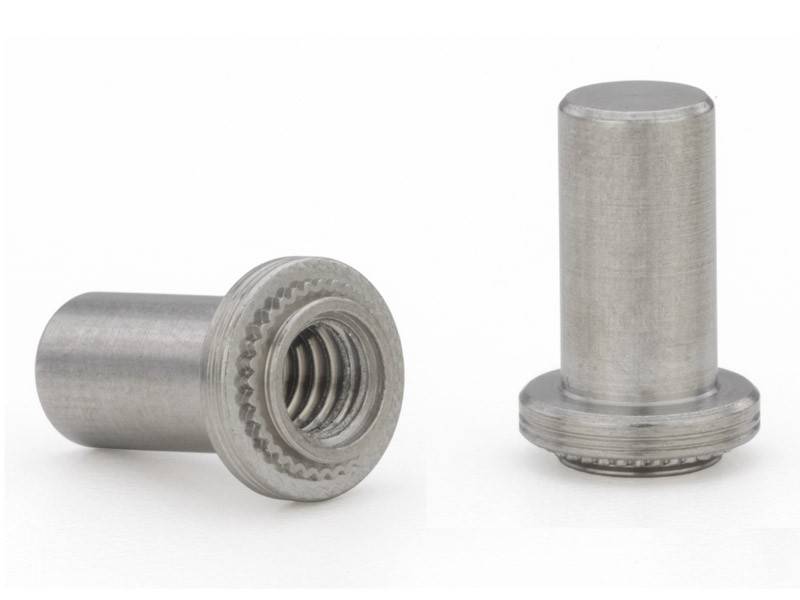

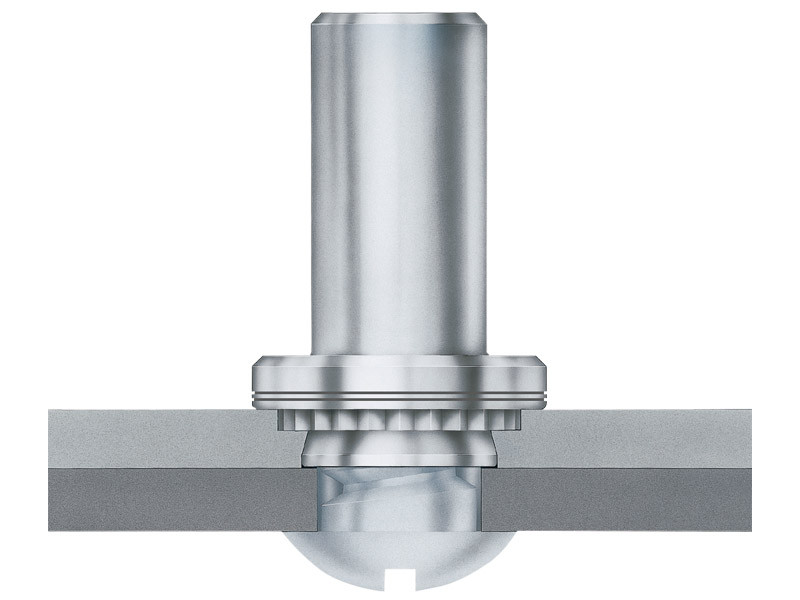

The BS-0420-1 is a stainless steel self-clinching blind nut designed to provide high-strength internal threads in thin metal sheets. This fastener features a closed-end (blind) design, which acts as a protective barrier against dirt, dust, and moisture while simultaneously preventing screw penetration. By containing the screw within the nut, it protects sensitive internal components from damage caused by over-long hardware. Its self-clinching profile ensures high pushout and torque-out resistance, and because it is installed into a bottomed-out hole, the reverse side of the host sheet remains completely flush and smooth.
Closed-End Design: Seals the assembly against environmental contaminants and protects internal parts from screw damage.
Flush Rear Surface: Ensures the back side of the metal panel is smooth and unobstructed for aesthetic or clearance requirements.
Permanent Attachment: Becomes an integral part of the assembly once squeezed into place, eliminating the risk of loose or lost hardware.
Corrosion Resistance: 300 Series Stainless Steel construction provides enhanced durability in demanding or corrosive environments.
High Performance: Offers superior load-bearing capabilities in thin materials where standard tapped threads would be insufficient.
Product Specs
- SKU:
- BS-0420-1
- Part Number:
- BS-0420-1
- Thread Size:
- 1/4-20 (.250-20)
- Thread Specification:
- 2B, ANSI B1.1
- Shank Code:
- 1
- Sheet Thickness Compatibility:
- 1.27 mm / .050 in (Minimum)
- Fastener Material:
- 300 Series Stainless Steel
- Finish:
- Passivated per ASTM A380
- Sheet Hardness Compatibility:
- HRB 70 / HB 125 or Less
- Hole Size in Sheet:
- 11.13 mm / .438 in
- Minimum Distance to Edge:
- 11.4 mm / .450 in

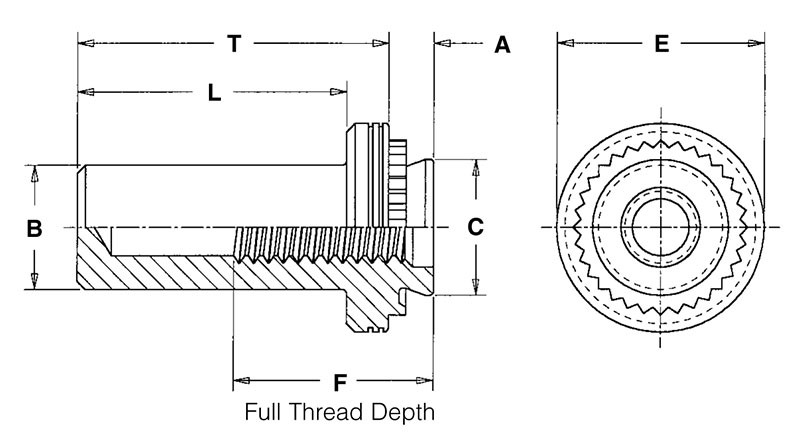

- Maximum Shank Length (A):
- 1.22 mm / .048 in
