Product Description

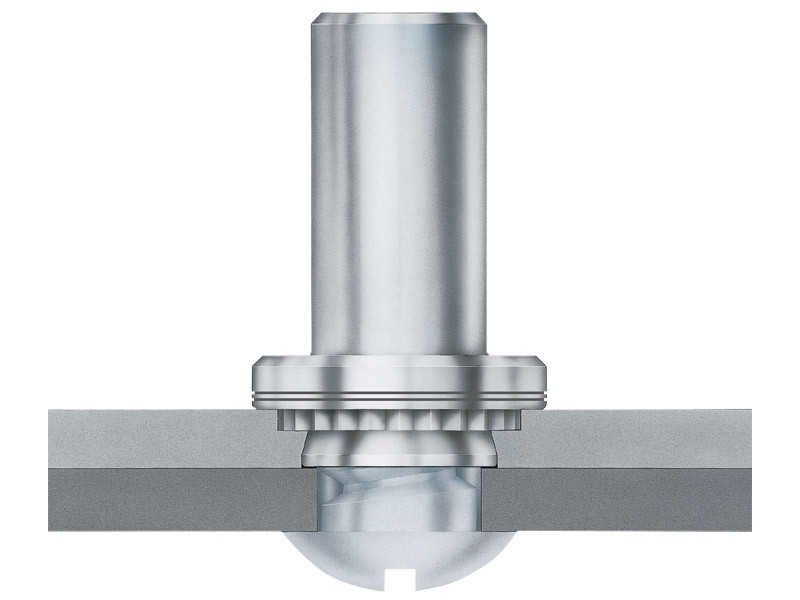

The BS-M4-2 is a stainless steel self-clinching blind nut engineered to provide high-strength metric internal threads in thin metal sheets. This fastener features a closed-end (blind) design, which creates a physical barrier that protects internal components from screw penetration and seals the assembly against dirt, dust, and moisture. By preventing screws from extending beyond the fastener, it eliminates the risk of damage to sensitive circuitry or adjacent parts. The self-clinching profile ensures the nut becomes a permanent part of the assembly with high torque-out and pushout resistance, while maintaining a completely flush and smooth finish on the reverse side of the host sheet.
Closed-End Protection: Barrier design prevents over-long screws from damaging internal components and seals out environmental contaminants.
Flush Rear Surface: The side opposite the installation remains smooth and unobstructed, ideal for aesthetic or clearance-critical applications.
Permanent Installation: Clinches into place to provide reusable, high-strength threads that will not loosen, rotate, or fall out.
Corrosion Resistance: Manufactured from 300 Series Stainless Steel, making it suitable for use in demanding or corrosive environments.
Shank Code 2: Specifically designed for installation into thicker sheets starting at 1.4 mm.
Product Specs
- SKU:
- BS-M4-2
- Part Number:
- BS-M4-2
- Thread Size:
- M4 x 0.7
- Thread Specification:
- 6H, ASME B1.13M
- Shank Code:
- 2
- Minimum Sheet Thickness:
- 1.4 mm
- Fastener Material:
- 300 Series Stainless Steel
- Finish:
- Passivated per ASTM A380
- Sheet Hardness Compatibility:
- HRB 70 / HB 125 or Less
- Hole Size in Sheet:
- 6.38 mm
- Minimum Distance to Edge:
- 7.1 mm
- Maximum Shank Length (A):
- 1.38 mm
