Product Description

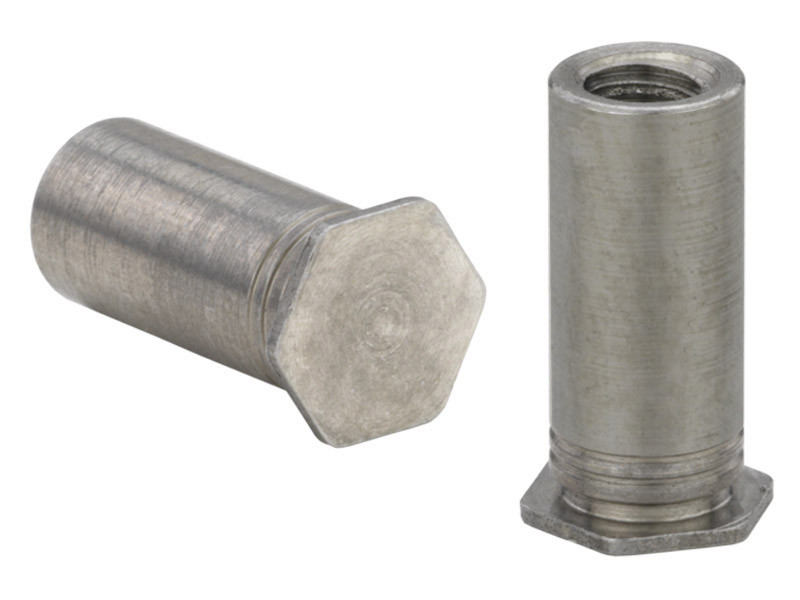

The PEM® BSOS-032-10 is a self-clinching blind threaded standoff designed for permanent installation into steel or aluminum sheets. Manufactured from 300 series stainless steel, this fastener provides excellent corrosion resistanceand is ideal for applications requiring clean, durable performance. Its closed-end (blind) design creates a solid barrier that seals the assembly against contaminants such as dust and moisture while protecting internal components by limiting screw penetration. When squeezed into a properly sized round hole using a standard press, the standoff becomes an integral part of the chassis, offering high pushout and torque-out resistance with a head that remains flush with the mounting surface for a smooth exterior profile.
Corrosion Resistance: Fabricated from 300 series stainless steel to withstand harsh environmental conditions.
Environmental Sealing: The blind, closed-end construction prevents the passage of air, liquid, or debris through the mounting hole.
Flush-Mount Profile: Installs completely flush on the reverse side of the sheet for a clean, seamless exterior appearance.
Component Protection: The solid outer wall acts as a positive stop, preventing damage to internal electronics or circuitry from long screws.
High Pullout Resistance: Displaces host material into the clinching profile during installation to provide high torque-out and pushout performance.
Product Specs
- SKU:
- BSOS-032-10
- Part Number:
- BSOS-032-10
- Thread Size:
- .164-32 (#8-32)
- Thread Specification:
- Unified Standard Class 2B, ANSI B1.1
- Standoff Length (L):
- .312 in
- Thread Type:
- Internal, Blind (Closed-end)
- Fastener Material:
- 300 Series Stainless Steel
- Standard Finish:
- Passivated
- Minimum Sheet Thickness:
- .040 in
- Hole Size in Sheet:
- .281 in
- Minimum Distance Hole Centerline to Edge:
- .31 in
- For Use in Sheet Hardness:
- HRB 70 / HB 125 or less
- Hex Size (H):
- 5/16 in
