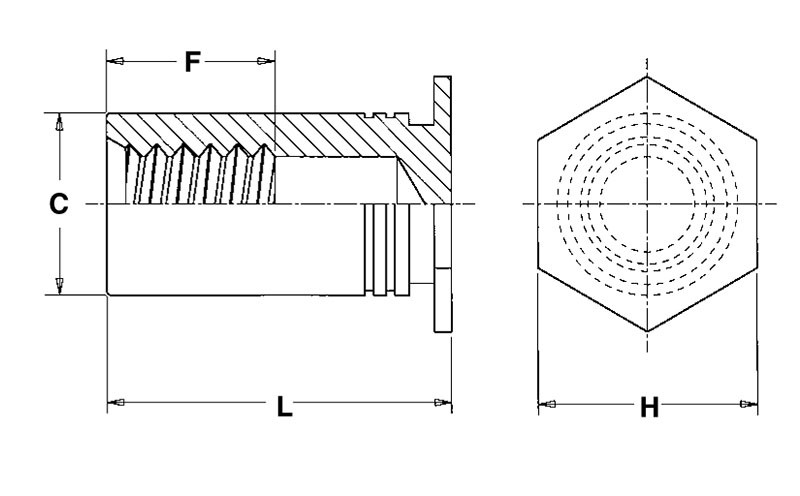

BSOS-8632-30 - Blind Threaded Standoffs by PennEngineering ® (PEM ® )

The PEM® BSOS-8632-30 is an extended-length self-clinching blind threaded standoff created by PennEngineering® to place strong, permanent internal threads within thin sheet metal panels. These fasteners deploy with a straightforward squeezing force into properly sized round holes, initiating a reliable self-clinching movement that forces panel material into the undercut to become a permanently mounted part of the chassis. Thanks to its blind-threaded engineering, the outer sheet surface stays completely flush and closed. This allows engineers to preserve a sleek, unmarred panel exterior while forming an unbreached physical barrier that isolates delicate internal electronic components and the thread cavity from external moisture, dust, and airborne contaminants.

Blind-Threaded Engineering: Keeps the exterior sheet completely flush and closed, creating a physical shield that protects sensitive interior circuits from outside airborne contaminants.

Self-Clinching Assembly: Anchors permanently into the host sheet under mechanical pressure, wiping out the failure risks and operational downtime tied to loose hardware.

Alternative to Panel Welding: Delivers high-strength internal threads without the thermal distortion, surface scarring, or rigorous structural safety protocols required by welding methods.

Thicker Wall Profiles: Employs the specialized 8632 designation to supply enhanced wall thickness and greater mechanical stabilization for demanding spacing applications using a #6-32 thread profile.
