Product Description

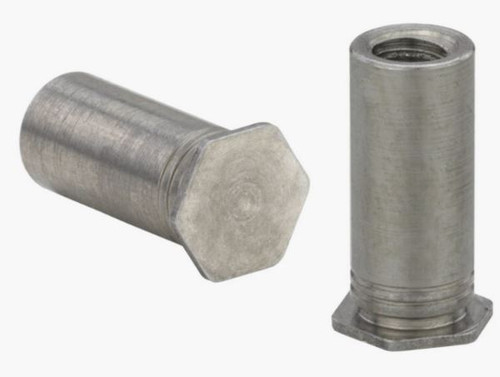

The PEM BSOS-M2.5-14 is a self-clinching blind threaded standoff engineered to provide reliable, load-bearing spacing solutions in ultra-thin sheets. Manufactured from 300 Series stainless steel, this high-performance fastener utilizes a proven self-clinching design that installs permanently into ductile metal sheets with a simple squeeze action. The standout feature is its blind-threaded (closed-end) design, which ensures that the outer surface of the thin metal chassis remains completely flush and closed after installation. This layout simultaneously protects delicate internal components from dust, debris, and external contaminants while maintaining an unmarred, premium aesthetic on external panels.
Blind-Threaded Enclosure: Closed-end construction seals the assembly, preventing the penetration of screws into outer surfaces and shielding electronics from environmental debris.
Permanent Self-Clinching Fit: High resistance to pushout and torque-out forces once pressed into place, becoming an integral part of the host sheet.
Flush Exterior Surface: Delivers a smooth, clean exterior profile without any unsightly protrusions or secondary grinding steps.
Corrosion Resistance: Built from rugged 300 Series stainless steel to ensure longevity in challenging environments.
Eliminates Secondary Labor: Cuts down assembly steps and production times by skipping traditional welding or tapping processes.
Product Specs
- SKU:
- BSOS-M2.5-14
- Part Number:
- BSOS-M2.5-14
- Brand:
- PEM (PennEngineering)
- Fastener Type:
- Blind Threaded Standoff (Metric)
- Thread Size x Pitch:
- M2.5 x 0.45
- Thread Code:
- M2.5
- Length Code:
- 14
- Standoff Length (L):
- 14 mm
- Material:
- 300 Series Stainless Steel
- Finish:
- Passivated
- Hole Size in Sheet:
- 4.22 mm
- Minimum Sheet Thickness:
- 1.00 mm
- Max. Sheet Hardness:
- HRB 70 / HB 125
- Thread Specification:
- Internal, ANSI/ASME B1.13M, 6H
