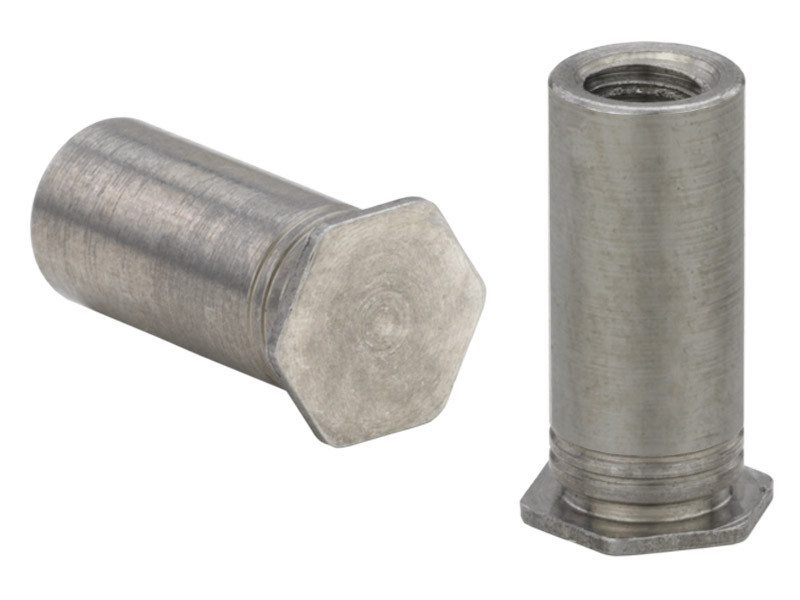

BSOS-M3.5-12 - Blind Threaded Standoffs by PennEngineering ® (PEM ® )

The PEM® BSOS-M3.5-12 is a high-precision metric blind threaded standoff designed to create secure internal clearance within thin sheet metal enclosures. Utilizing a field-proven self-clinching design, the fastener drops easily into a properly sized round hole and installs permanently with a standard squeezing force, cold-flowing the host metal into its retention profile to achieve superior torque-out and pushout resistance without the thermal distortion or weaknesses of welding. Its blind-threaded (closed) cavity ensures that the opposite side of the sheet metal remains completely flush and unmarred, preserving a pristine external cosmetic finish while acting as a resilient, dust-tight barrier to protect delicate internal electronics from environmental contamination. Manufactured from premium 300 Series Stainless Steel, it delivers high mechanical durability and long-term corrosion protection, making it ideal for telecom racks, medical instrumentation, server housings, and complex electronic sub-assemblies.

Self-Clinching Mechanical Bond: Installs rapidly with a standard pressing action to eliminate loose secondary hardware, tapping, or the heat stress of welding.

Closed-Bottom Blind Cavity: Guarantees that the reverse surface of the host chassis remains entirely flat and smooth while sealing the internal thread chamber from outside debris.

300 Series Stainless Steel Construction: Forged from high-grade stainless steel to ensure robust structural strength and premium protection against rust and oxidation.

Reliable Metric Spacing: Combines a metric M3.5 internal thread with a precise 12 mm physical standoff height, optimized for sub-panel mounting and circuit board stacking.
