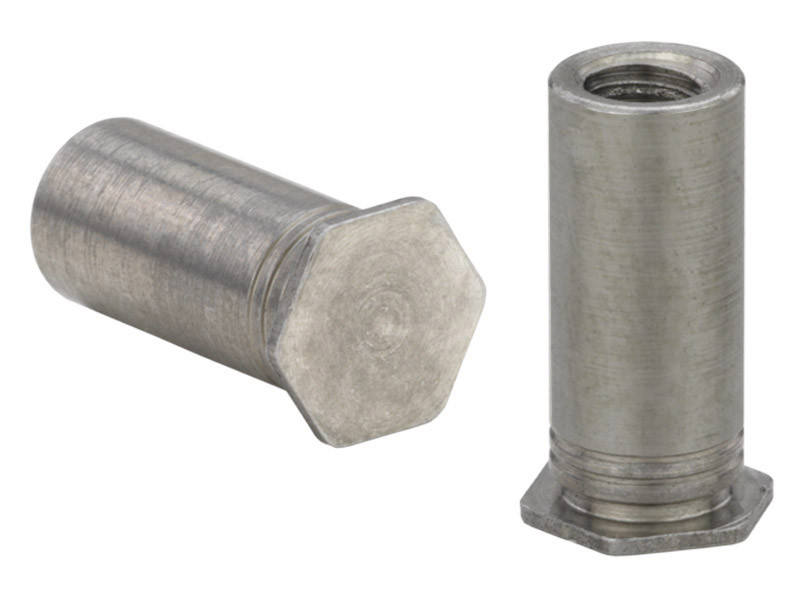

BSOS-M4-20 - Blind Threaded Standoffs by PennEngineering ® (PEM ® )

The PEM® BSOS-M4-20 is an extended length metric self-clinching blind threaded standoff manufactured by PennEngineering® to establish strong, load-bearing internal threads in thin metal sheets. These fasteners install efficiently with a steady squeezing force into properly sized round holes, using a mechanical self-clinching action that forces host material to cold-flow into the undercut so the standoff becomes permanently mounted as an integral part of the chassis layout. Thanks to its blind-threaded engineering, the outer surface of the thin sheet metal remains completely flush and closed after installation. This allows design engineers to maintain a pristine, unblemished exterior panel profile while providing an unbroken physical barrier that completely isolates delicate internal electronic components and the thread cavity from external dust, moisture, and environmental contaminants.

Blind-Threaded Configuration: Features a closed bottom barrel that keeps the reverse side of the host sheet clean,smooth, and completely sealed against environmental ingress.

Permanent Self-Clinching Fit: Displaces host material into the fastener's undercut during installation, delivering high pushout and torque-out resistance without loosening over time.

Flush External Surface: Ensures the outer face of the panel remains entirely flat and unmarred for a premium aesthetic and streamlined appearance.

Corrosion-Resistant Composition: Fabricated from 300 Series stainless steel to provide long-lasting, reliable mechanical performance in sensitive or demanding electronic environments.

Alternative to Panel Welding: Eliminates the need for specialized welding equipment, thermal distortion risks, and secondary grinding operations on thin host panels.
