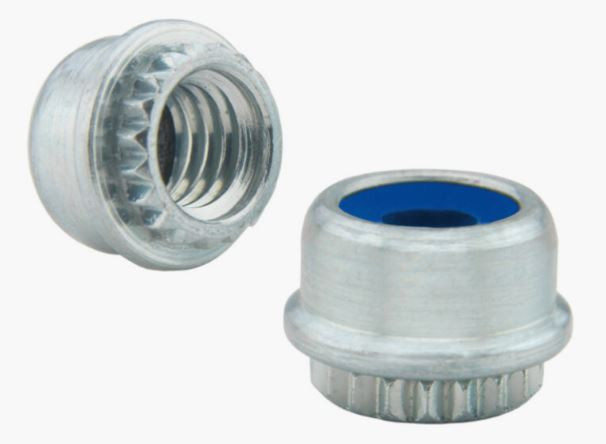

CFN-440-1ZI by PENN ENGINEERING

These self-clinching miniature nuts are engineered to provide high-strength, permanent load-bearing threads in ultra-thin metal sheets. Featuring a compact, space-saving design, they install completely flush into the hosting panel, making them ideal for applications with severe space or weight constraints. When pressed into a properly sized round hole using a standard press, the panel material cold-flows into the knurled clinching ring, locking the fastener tightly against spin-out and pull-out. The zinc plating with a clear chromate finish offers reliable corrosion resistance while ensuring the hosting sheet retains its sleek finish.

Miniature Configuration: Optimized space-saving profile designed to fit ultra-thin sheets where close-to-edge installation or tight component spacing is required.

Flush-Finish Installation: Presses cleanly into the hosting sheet to create a completely flush, low-profile assembly surface on the reverse side.

High Torque Resistance: The knurled clinching ring uses cold-flow technology to lock the fastener permanently in place, offering excellent resistance to torque and push-out forces.

Corrosion Protection: Finished with clear zinc plating to safeguard the carbon steel hardware against premature wear and oxidation.
