Product Description

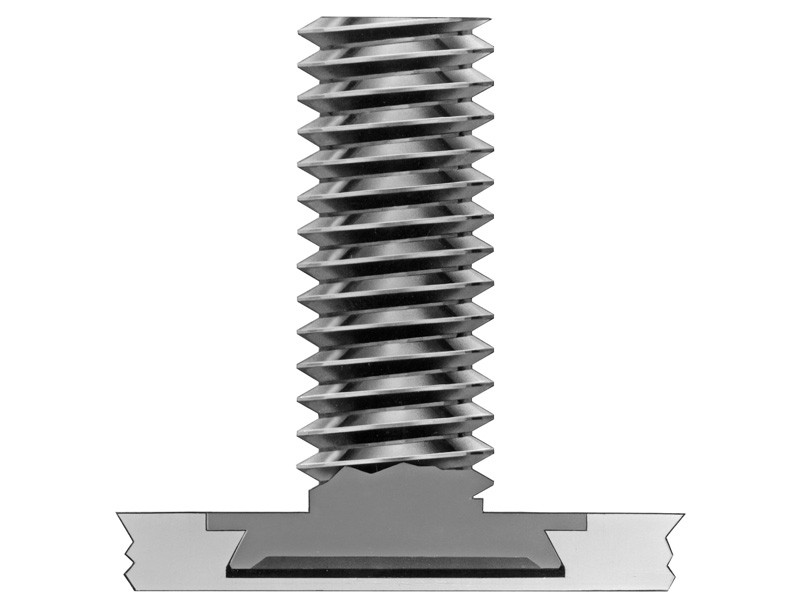

The CHC-440-4 is a precision-engineered concealed-head self-clinching stud manufactured by PennEngineering® (PEM®). Designed to provide permanent external threads in thin sheet metal panels, this fastener installs securely into a milled blind hole. By nesting the fastener head completely within the blind cavity, the opposite side of the sheet remains perfectly smooth and unmarred, ensuring flawless surface aesthetics and preserving exterior styling. Fabricated from high-quality 300 Series Stainless Steel, it delivers long-term corrosion resistance and creates a high-strength, permanent bond that reliably resists pushout and torque-out forces without the need for welding.
Concealed-Head Functionality: Mounts inside a blind hole to keep the reverse side of the panel flat, closed, and unmarred.
Permanent Self-Clinching Installation: Integrates directly into panels using standard press-in action, eliminating complex welding steps.
Premium Material Construction: Fabricated from 300 Series Stainless Steel to provide reliable structural durability and high corrosion resistance.
Robust Mechanical Hold: Displaced sheet metal flows smoothly around the head into the undercut to securely support attached components under operating loads.
Product Specs
- SKU:
- CHC-440-4
- Part Number:
- CHC-440-4
- Thread Size:
- .112-40 (#4-40)
- Thread Specification:
- External, ANSI B1.1, 2A
- Standoff Length (L):
- .250 in (Stud Length)
- Thread Type:
- Unified
- Fastener Material:
- 300 Series Stainless Steel
- Standard Finish:
- Passivated and/or Tested Per ASTM A380
- Minimum Sheet Thickness:
- .062 in
- Hole Size in Sheet:
- .127 in (Blind Mounting Hole Diameter)
- Minimum Distance Hole Centerline to Edge:
- .140 in
- For Use in Sheet Hardness:
- HRB 70 / HB 125 or Less
