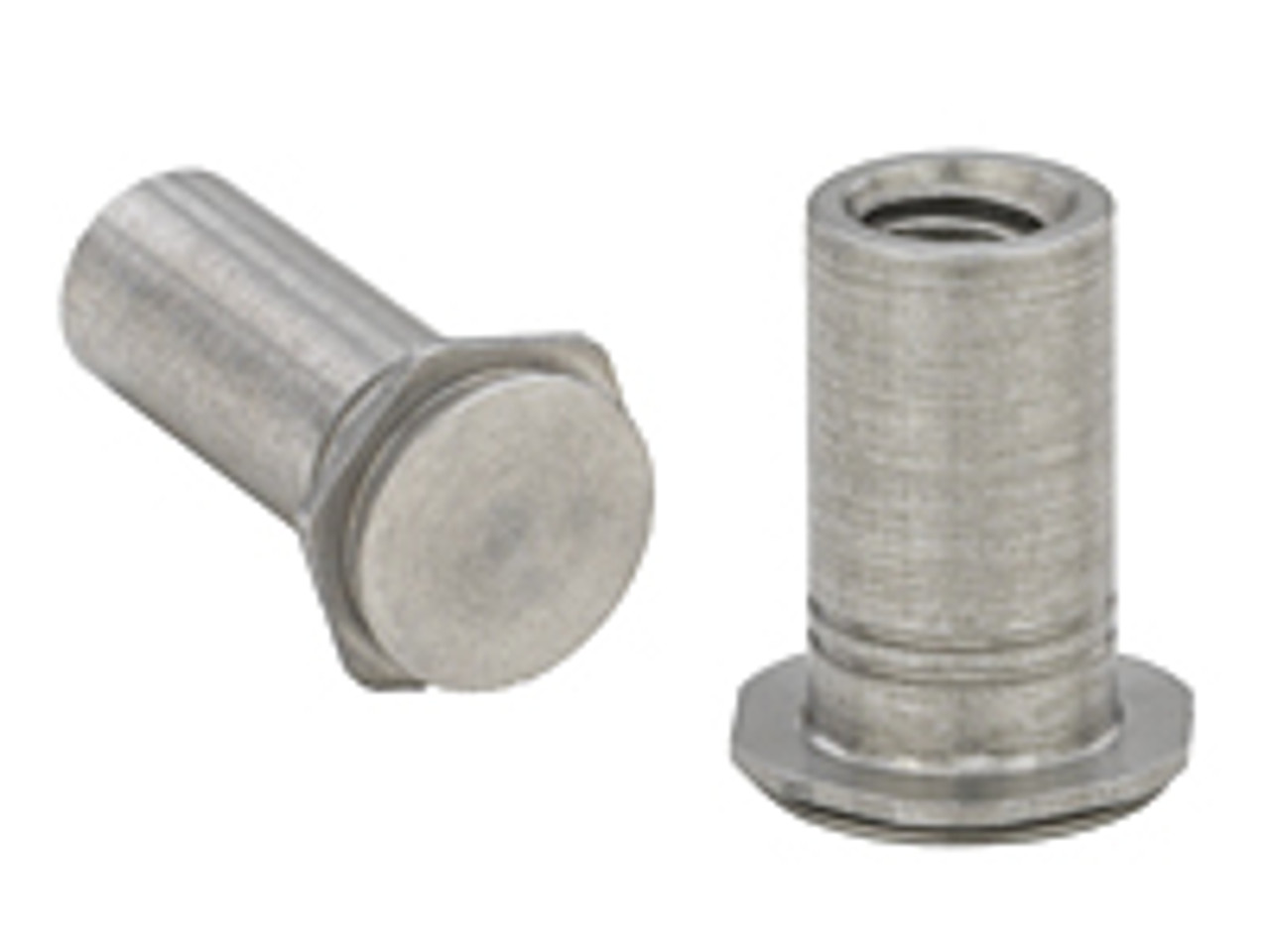

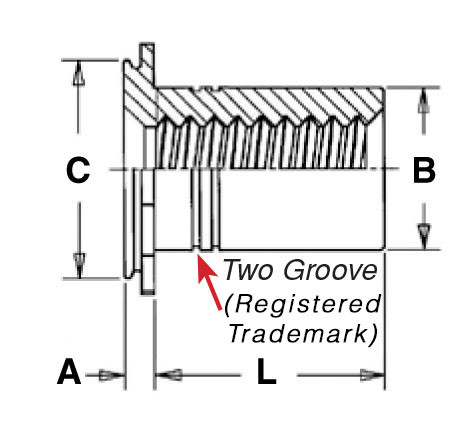

CSS-632-4 - Stainless Steel Standoffs by PennEngineering ® (PEM ® )

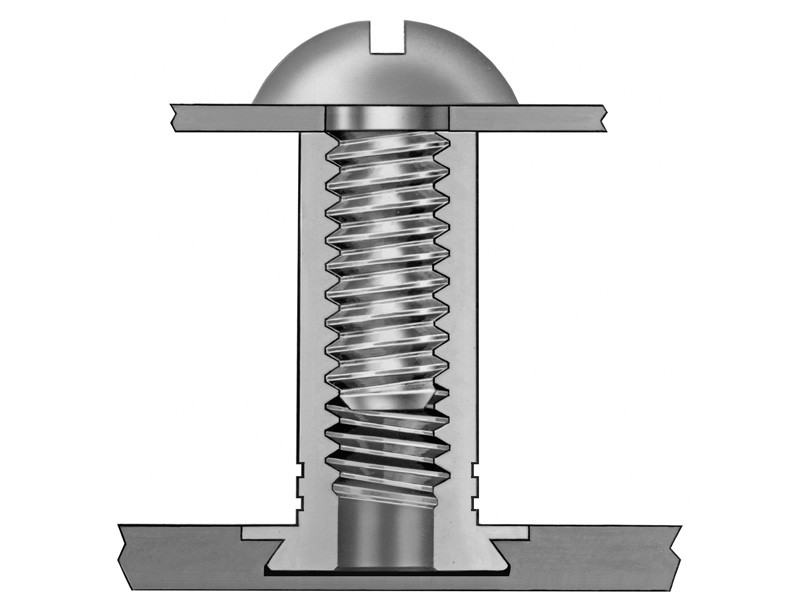

These standoffs ensure permanent mounting in metal sheets as thin as .062 in. The fastener head is locked securely in a blind, milled hole and is able to handle substantial loads. The concealed-head feature allows the side of the sheet opposite installation to remain smooth. Sheet preparation only requires a milled blind hole to the recommended minimum depth. Center-cutting end mills for hole preparation are available from PennEngineering. Installation of the concealed-head studs and standoffs is simple using a hollow anvil and solid punch. Place the head of the fastener in the hole and insert using any standard press. Displaced sheet metal flows smoothly around the head into the undercut.

Permanent mounting in metal sheets as thin as .062 in.

Concealed-head design allows the side opposite of installation to remain entirely smooth and unmarred.

Fastener head locks securely into a blind, milled hole to handle substantial loads.

Simple installation process utilizing a standard press with a hollow anvil and solid punch.

Displaced sheet metal flows smoothly into the undercut for a clean finish.
