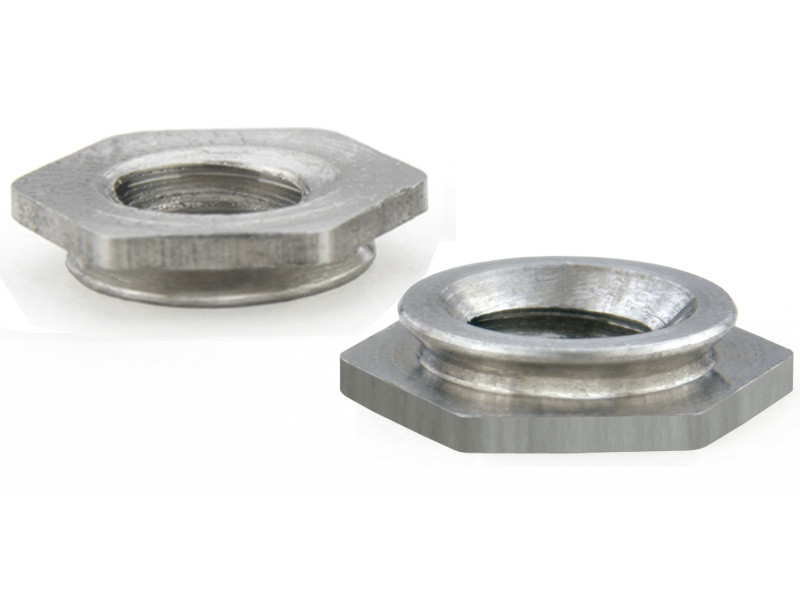

F4-632-2 - PEMSERT ® Self-Clinching Flush Nut by PennEngineering ® (PEM ® )

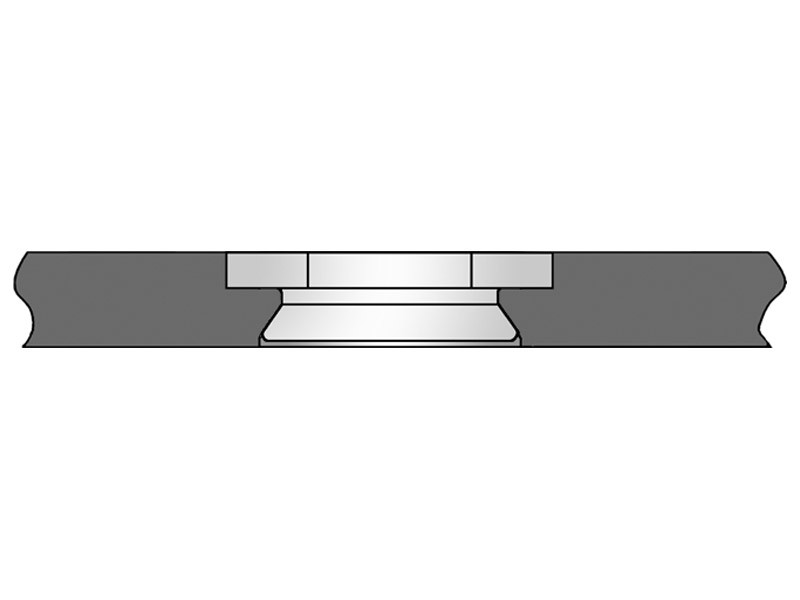

The PEMSERT® F4-632-2 is a high-performance self-clinching flush nut engineered to deliver permanent, load-bearing internal threads in thin metal sheets without creating any profile protrusions. Fabricated from rugged, heat-treated 400 Series Stainless Steel, this unified fastener is uniquely optimized to install and perform flawlessly inside rigid stainless steel host sheets where softer fasteners fail. When integrated into a round hole using standard parallel squeezing pressure, the nut's hexagonal head embeds entirely into the panel, prompting the surrounding host metal to cold-flow seamlessly into its precision undercut. This creates an extraordinarily secure attachment with immense axial and torsional strength while ensuring that both the top and bottom surfaces of the sheet remain perfectly flat, maximizing cosmetic quality and packaging clearances.

Key FeaturesCompletely Flush Installation embeds entirely into the host panel so both the top and bottom sheet surfaces remain perfectly flat and obstacle-free.

Heat-Treated 400 Series Stainless Steel provides the high material hardness necessary to successfully clinch into demanding stainless steel host sheets.

High-Strength Hexagonal Headworks alongside the proven self-clinching geometry to guarantee superior resistance against heavy rotational torque-out and axial pullout forces.

Streamlined Cosmetic Performance eliminates protruding hardware profiles to support ultra-tight component packaging and pristine external industrial designs.
