Product Description

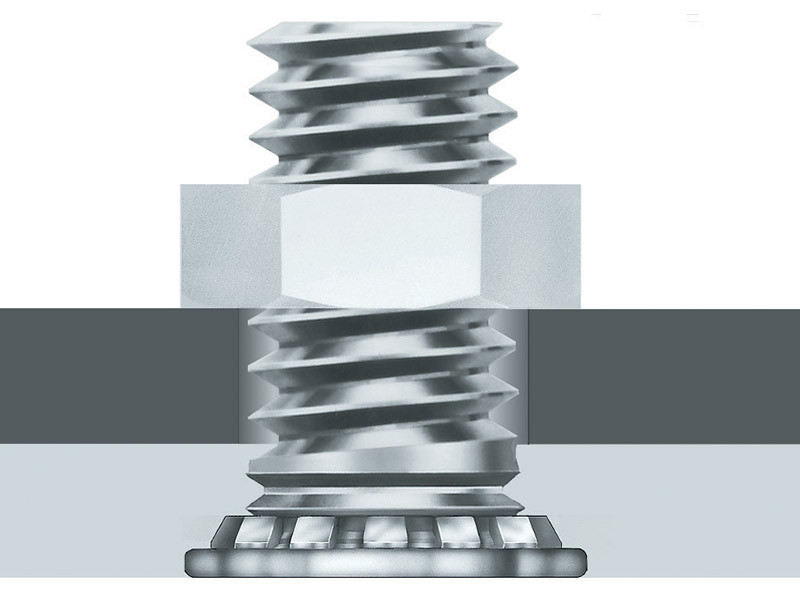

The FH-632-4ZI is a carbon steel fastener engineered for installation into steel or aluminum sheets with a hardness of HRB 80 or less. It utilizes a "squeeze" installation process where the stud is pressed into a properly sized round hole. The cold-flow of the host metal into the annular groove under the head locks the stud securely in place, leaving the head flush with the surface of the sheet.
Flush Mounting: The head of the stud seats flush with the surface of the metal sheet for a professional appearance.
High Torque Resistance: The clinching mechanism provides superior resistance to rotation compared to standard sheet metal screws.
Trivalent Finish: Features a "ZI" finish that is environmentally friendly and provides reliable corrosion protection.
Permanent Integration: Becomes a permanent part of the panel, eliminating the risk of loose hardware during product assembly or maintenance.
Product Specs
- SKU:
- FH-632-4ZI
- Manufacturer:
- PennEngineering® (PEM®)
- Part Number:
- FH-632-4ZI
- Thread Type:
- Unified (UNC), External, 2A per ASME B1.1
- Length Code:
- 4 (0.250 in / 6.35 mm)
- Material:
- Heat-Treated Carbon Steel
- Finish:
- Zinc plated, clear chromate (ZI)
- Material Code:
- Steel (Heat-Treated)
