Product Description

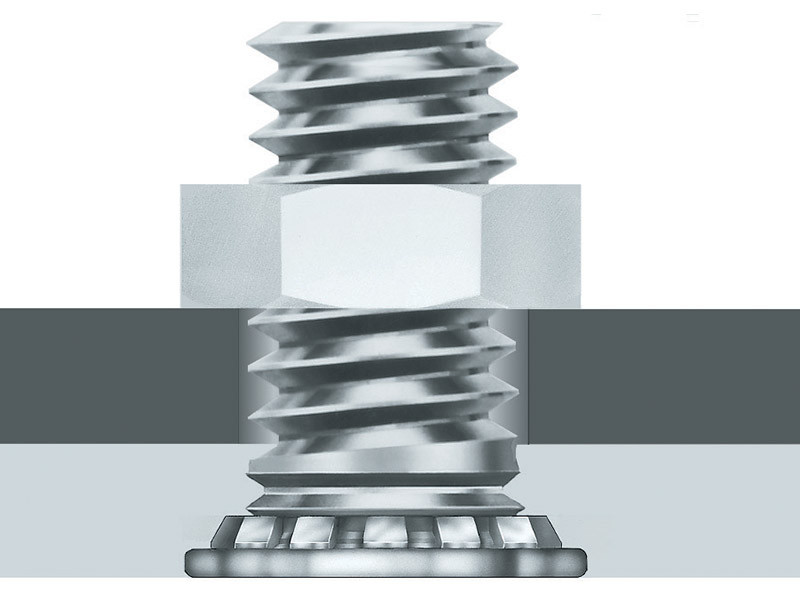

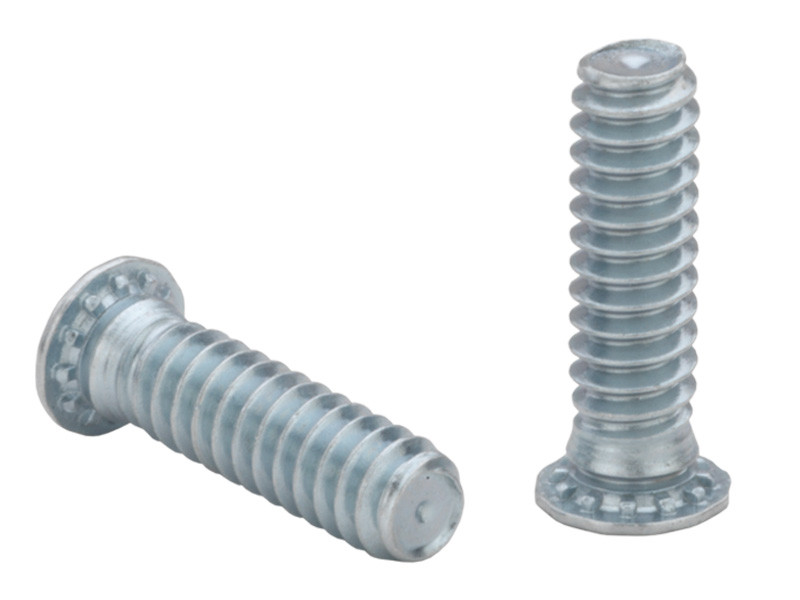

The FHS-032-8 is a flush-head stud specifically engineered for installation into stainless steel, steel, or aluminum sheets. Its self-clinching design utilizes a "squeeze" installation method: when pressed into a properly sized hole, the metal of the host sheet flows into the annular groove under the head, locking the stud securely in place. This results in high torque-out and pushout resistance while maintaining a flush finish on the reverse side of the panel.
Flush-Head Design: Ensures the head is seated flush with the sheet surface for a clean, professional aesthetic.
High Performance: Provides superior resistance to torque-out and pull-through compared to traditional welding or sheet metal screws.
Ease of Assembly: Can be installed using any standard pneumatic, hydraulic, or mechanical press.
Permanent Attachment: Becomes an integral part of the chassis or panel, eliminating the risk of loose hardware during field service.
Product Specs
- SKU:
- FHS-032-8
- Manufacturer:
- PennEngineering® (PEM®)
- Part Number:
- FHS-032-8
- Thread Size:
- #10-32 (.190-32)
- Length Code:
- 8 (0.500 in / 12.7 mm)
- Material:
- 300 Series Stainless Steel
- Finish:
- Passivated (per ASTM A380)
- Material Code:
- S
