Product Description

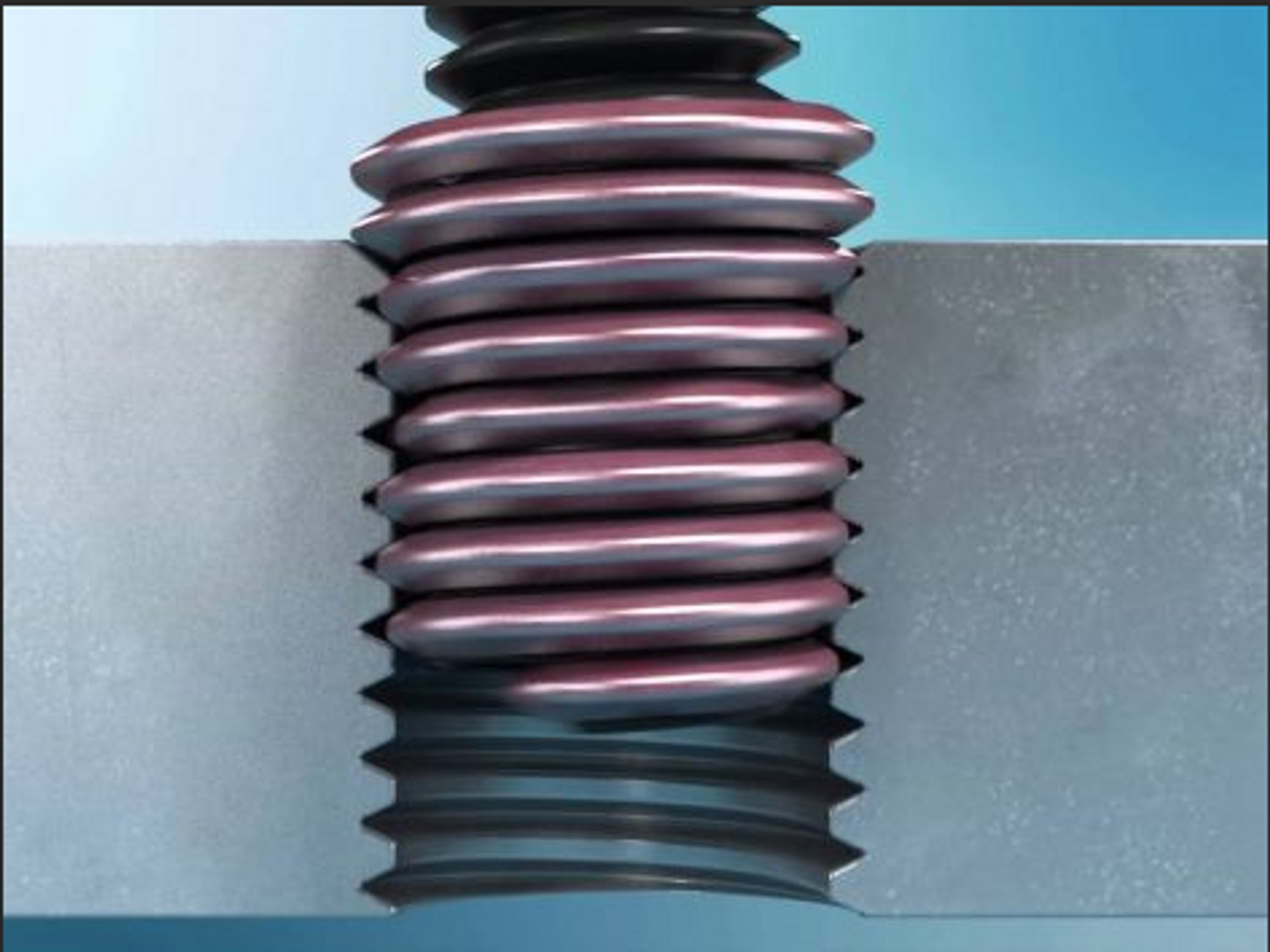

#2-56 TPI, 0.11 to 0.119" OD, 0.129" L, Gray, Dry Film Lubricant, 304 Stainless Steel, 5-1/4-Coils, Diamond Knurled, Screw-Locking, Screw Threaded Insert (Strip Feed)
Screw Threaded Insert Type Diamond Knurled, Screw-Locking Nominal Diameter #2 TPI 56 Thread Series UNC-2A External Thread Size 0.11 to 0.119 Inch Drill Size #41 Overall Length 0.129 Inch Material AS7245 304 Stainless Steel Finish Dry Film Lubricant Tensile Strength 200000 to 250000 PSI Application Plastic Diameter 1.5 Number of Coils 5-1/4 Locking Torque 20 Inch-Ounce Countersink 0.09 to 0.11 Inch Color Gray Applicable Standard NASM21209, NASM8846, NAS1130, ASME B18.29.1 Packaging Type Strip Feed
Product Videos
Custom Field
Grip Range 1.5
Inner Diameter (I.D.) 0.11 to 0.119 in.
Length 0.129 in.
Material Dry Film Lubricant
Pitch 0.11 to 0.119 in.
RoHS Compliant Gray
Thread #2-56 TPI
Type Diamond Knurled, Screw-Locking
