MS21209C0610LSF - Screw Threaded Insert by Helicoil Stanley Engineered Fastening

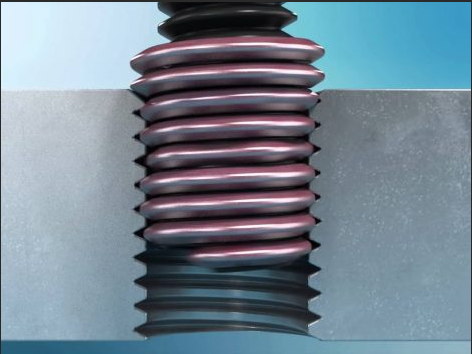

The Heli-Coil MS21209C0610LSF by Stanley Engineered Fastening is a military-specification tanged screw-locking insert provided in a strip-feed format for high-speed automated installation lines. Precision cold-rolled from high-grade 304 stainless steel wire with a diamond-shaped cross-section, this wire thread insert adjusts to pitch and angle variances to optimize load distribution across soft parent metals like aluminum and magnesium. Its advanced screw-locking configuration incorporates a series of specialized straight chord segments on the internal coils that exert a resilient, self-locking torque on the male fastener, preventing rotational loosening under severe shock and vibration without requiring lock-washers or auxiliary locking hardware.

Screw-Locking Mechanism Grips the male bolt or screw with a series of specialized straight segments on the internal coils, ensuring a secure, vibration-proof joint without requiring lock-washers or auxiliary locking devices.

Strip-Feed Format Supplied on continuous strips to optimize production throughput and support automated high-speed installation equipment.

Military Specification Certified Manufactured to stringent military standards, guaranteeing exceptional performance and dimensional accuracy in critical mission-grade applications.

Tanged Configuration Features a traditional driven installation tang that provides positive mechanical engagement with standard mandrels for controlled and highly accurate depth seating into tapped holes.
