Product Description

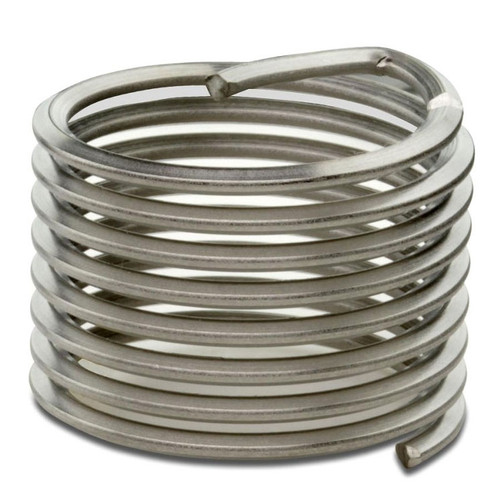

#4-40 TPI, 0.144 to 0.159" OD, 0.168" L, Gray, Dry Film Lubricant, 304 Stainless Steel, 4-3/4-Coils, Diamond Knurled, Free Running, Screw Threaded Insert (Strip Feed) T1185-04CW168S
Screw Threaded Insert Type Diamond Knurled, Free Running Nominal Diameter #4 TPI 40 Thread Series UNC-2A External Thread Size 0.144 to 0.159 Inch Drill Size #31 Overall Length 0.168 Inch Material AS7245 304 Stainless Steel Finish Dry Film Lubricant Tensile Strength 200000 to 250000 PSI Application Plastic Diameter 1.5 Number of Coils 4-3/4 Locking Torque 48 Inch-Ounce Countersink 0.14 to 0.17 Inch Color Gray Applicable Standard NASM8846, NAS1130, ASME B18.29.1 Packaging Type Strip Feed
Product Videos
Custom Field
Grip Range 1.5
Inner Diameter (I.D.) 0.144 to 0.159 in.
Length 0.168 in.
Material Dry Film Lubricant
Pitch 0.144 to 0.159 in.
RoHS Compliant Gray
Thread #4-40 TPI
Type Diamond Knurled, Free Running
