Product Description

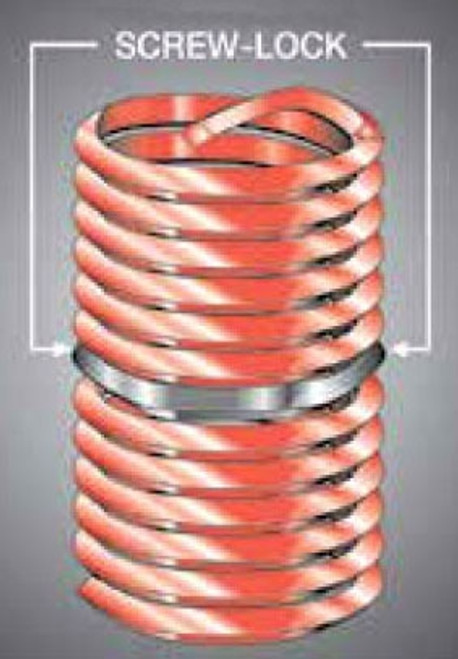

#4-40 TPI, 0.144 to 0.159" OD, 0.112" L, Olive Drab, Cadmium, 304 Stainless Steel, 2-3/4-Coils, Diamond Knurled, Screw-Locking, Screw Threaded Insert T3585-04CY112
Screw Threaded Insert Type Diamond Knurled, Screw-Locking Nominal Diameter #4 TPI 40 Thread Series UNC-2A External Thread Size 0.144 to 0.159 Inch Drill Size #31 Overall Length 0.112 Inch Material AS7245 304 Stainless Steel Finish Cadmium Tensile Strength 200000 to 250000 PSI Application Plastic Diameter 1 Number of Coils 2-3/4 Locking Torque 48 Inch-Ounce Countersink 0.14 to 0.17 Inch Color Olive Drab Applicable Standard NASM21209, NASM8846, NAS1130, ASME B18.29.1, AGS3600-3699,
Product Videos
Custom Field
Grip Range 1
Inner Diameter (I.D.) 0.144 to 0.159 in.
Length 0.112 in.
Material Cadmium
Pitch 0.144 to 0.159 in.
RoHS Compliant Olive Drab
Thread #4-40 TPI
Type Diamond Knurled, Screw-Locking
