Product Description

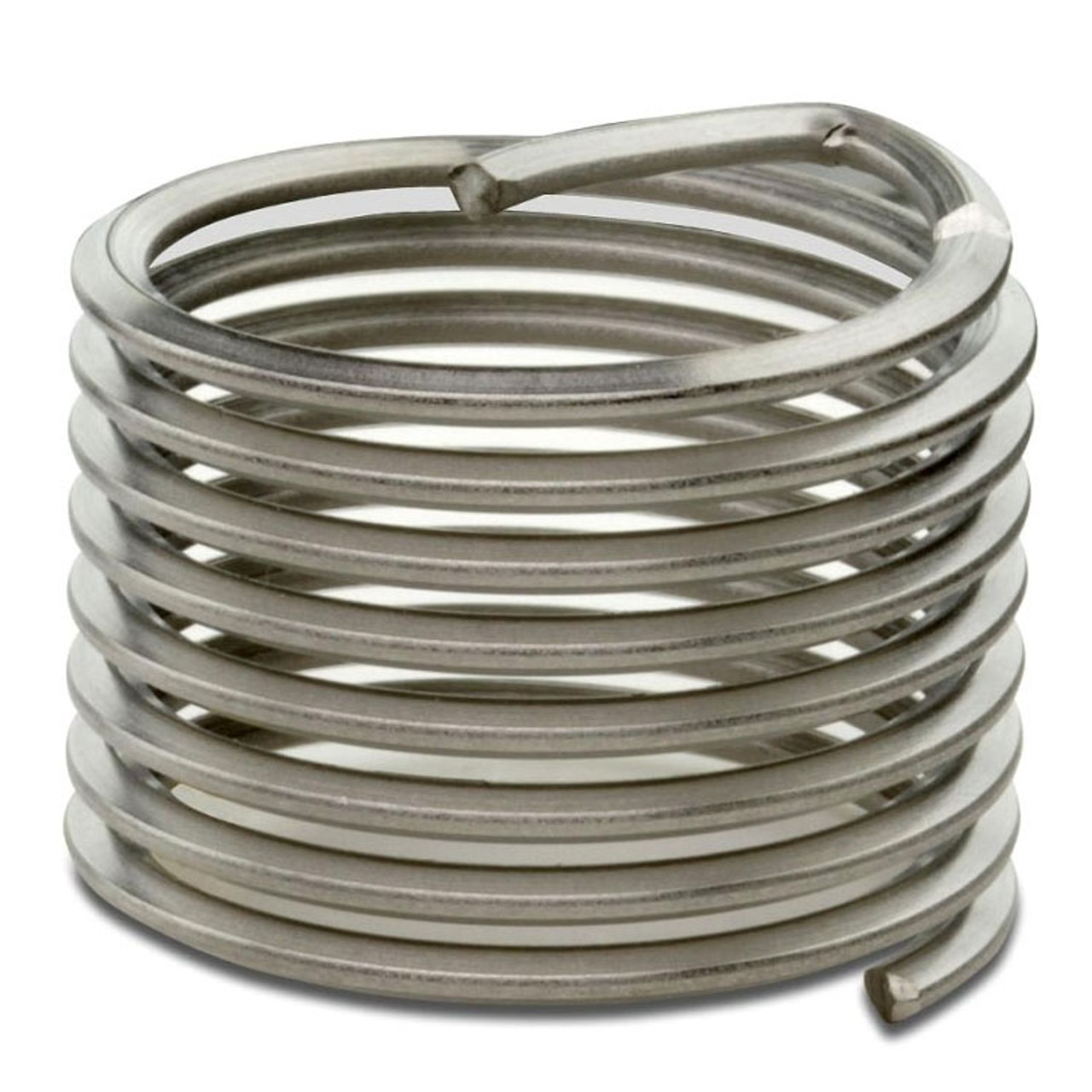

The Heli-Coil® NAS1130-08-10 is a tangless, free-running wire thread insert precision-manufactured from 304 stainless steel. Conforming to stringent aerospace standards (NAS1130), this insert creates durable, wear-resistant #8-32 UNC internal threads in low-density materials such as aluminum, magnesium, and composites. Featuring an advanced tangless design, it eliminates the need for tang break-off and retrieval, completely removing foreign object debris (FOD) risks and accelerating production workflows. The precision-formed helical coil profile distributes dynamic loads evenly to prevent thread wear, galling, and stripping.
Tangless Wire Construction eliminates tang removal steps, reducing installation time and preventing foreign object debris (FOD) hazards in sensitive assemblies.
304 Stainless Steel Composition offers outstanding tensile strength, wear resistance, and long-lasting protection against corrosion.
Free-Running Thread Profile permits standard male fasteners to thread smoothly through the coil without applying locking friction.
Aerospace-Grade NAS Specification engineered to satisfy demanding military and commercial aerospace standards for high-reliability joints.
#8-32 UNC Coarse Threading delivers reliable thread reinforcement and repair in compact, lightweight structural components.
Product Specs
- SKU:
- NAS1130-08-10
- Thread Size (Inch):
- #8-32
- Thread:
- UNC
- Overall Insert Length (Decimal Inch):
- 0.164
- Tang:
- Tangless
- Material:
- 304 Stainless Steel
- Number of Free Coils:
- 3-3/4
- Length to Diameter Ratio:
- 1:1
- Coating/Finish:
- Plain
